DLE85
Powerful performance for professional flight applications.
Technical Specifications
Detailed performance metrics of the DLE85
Core Performance
- Performance
- 8.5HP/9000rpm
- Idle Speed
- 1500 rpm/min
- Thrust (100m altitude)
- 21kg
- Thrust (1800m altitude)
- 18kg
- Propeller Size
- 25x10 ; 26x9 ; 27x8
- Spark Plug Model
- NGK CM6
Dimensions & Weight
- Displacement
- 85cm³
- Bore × Stroke
- 52mm × 40mm
- Compression Ratio
- 9.5 : 1
- Lubrication Ratio
- 30 : 1
- Weight Distribution
- Engine 1940gExhaust 250gIgniter 140g
- Igniter Voltage
- 4.8V - 8.4V

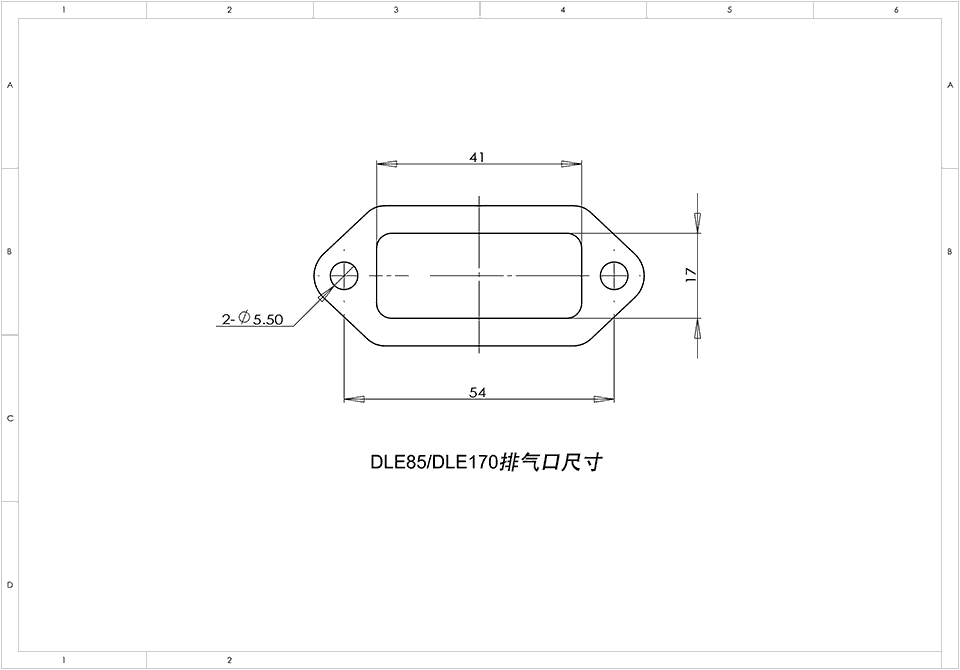

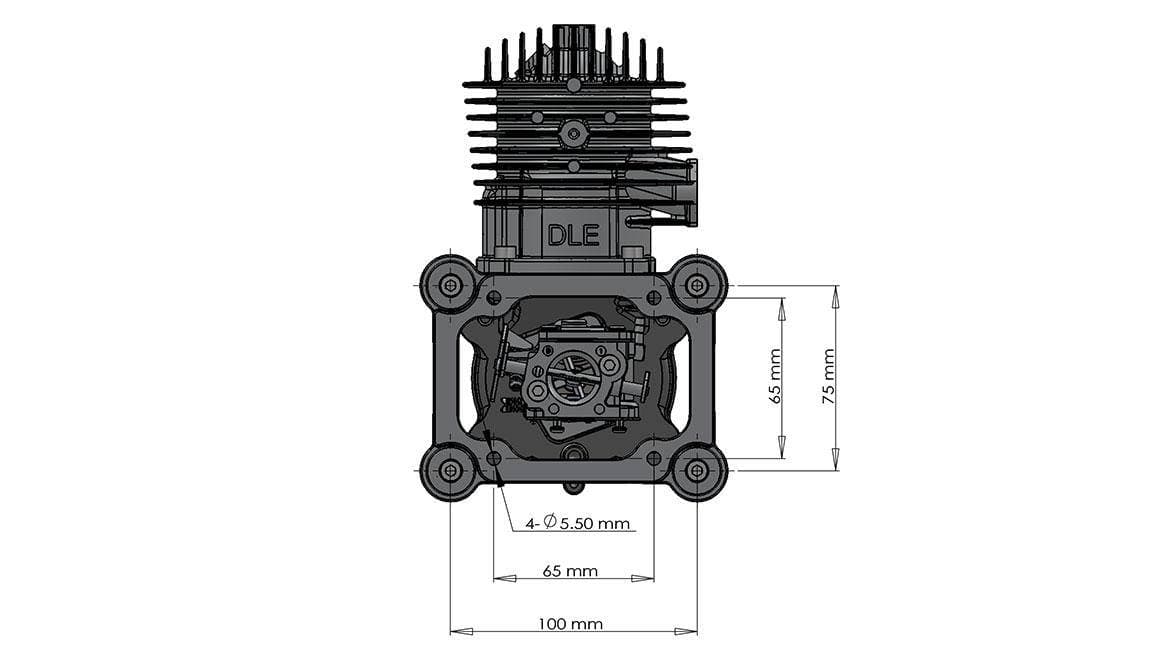

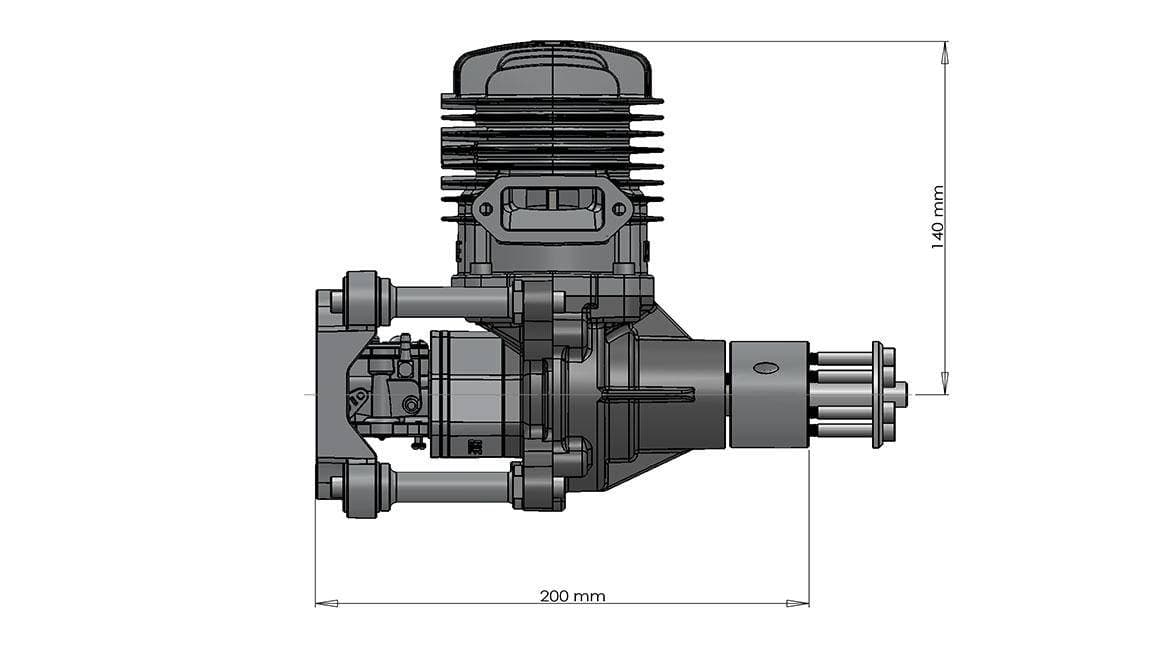

Product Dimensions
Precise engineering diagrams for cabin layout planning.
Technical Support & Downloads
Download detailed installation instructions and 3D model data for quick deployment.
