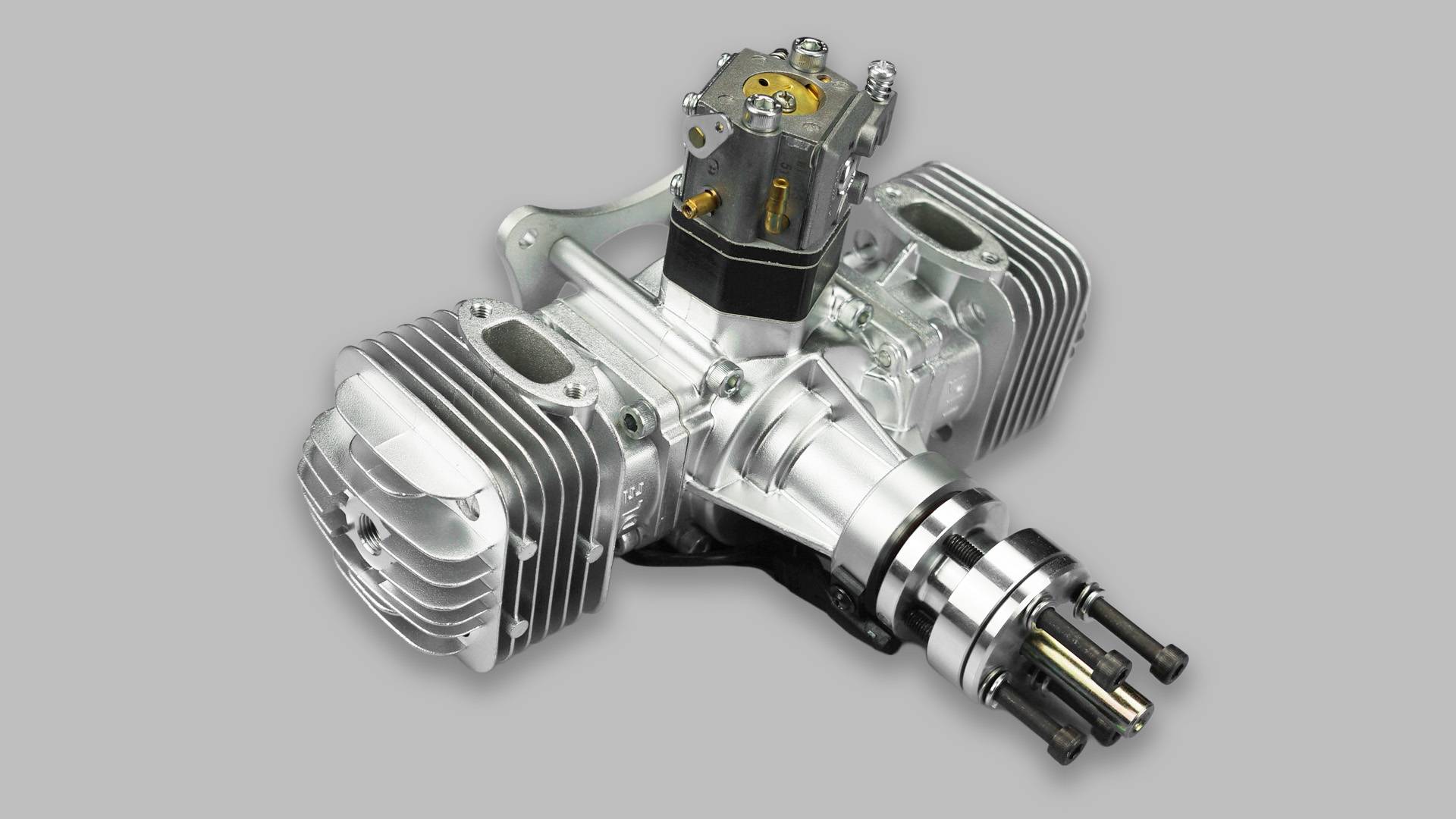

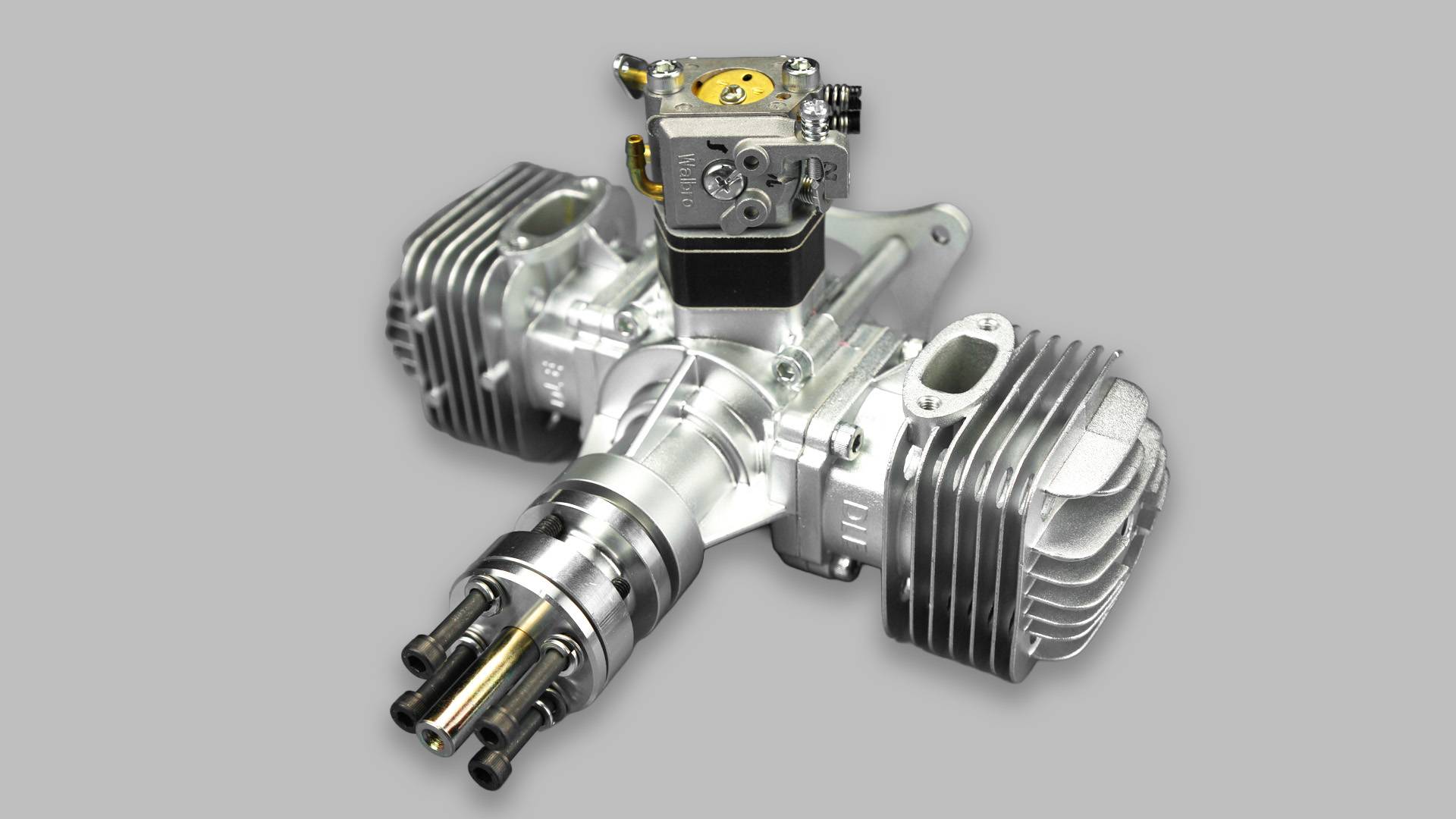

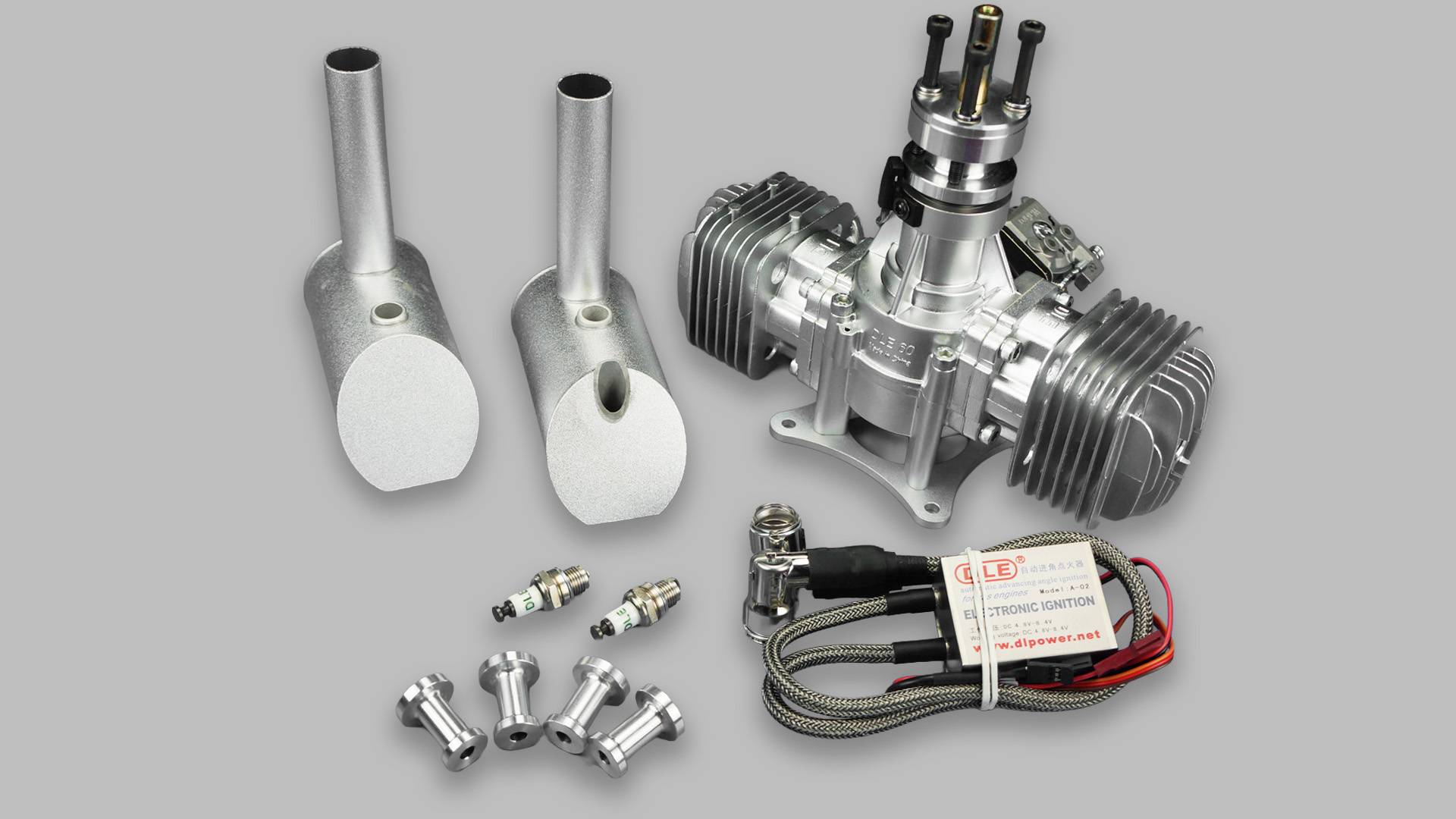

DLE60
Powerful performance for professional flight applications.
Technical Specifications
Detailed performance metrics of the DLE60
Core Performance
- Performance
- 7HP/8500rpm
- Idle Speed
- 1400 rpm/min
- Thrust (100m altitude)
- 15.2kg
- Thrust (1800m altitude)
- 13.5kg
- Propeller Size
- 22x10 ; 23x8 ; 23x10 ; 24x8
- Spark Plug Model
- NGK CM6
Dimensions & Weight
- Displacement
- 61cm³
- Bore × Stroke
- 36mm × 30mm
- Compression Ratio
- 7.6 : 1
- Lubrication Ratio
- 30 : 1
- Weight Distribution
- Engine 1560gExhaust 200gIgniter 190g
- Igniter Voltage
- 4.8V - 8.4V
Product Dimensions
Precise engineering diagrams for cabin layout planning.
Technical Support & Downloads
Download detailed installation instructions and 3D model data for quick deployment.
