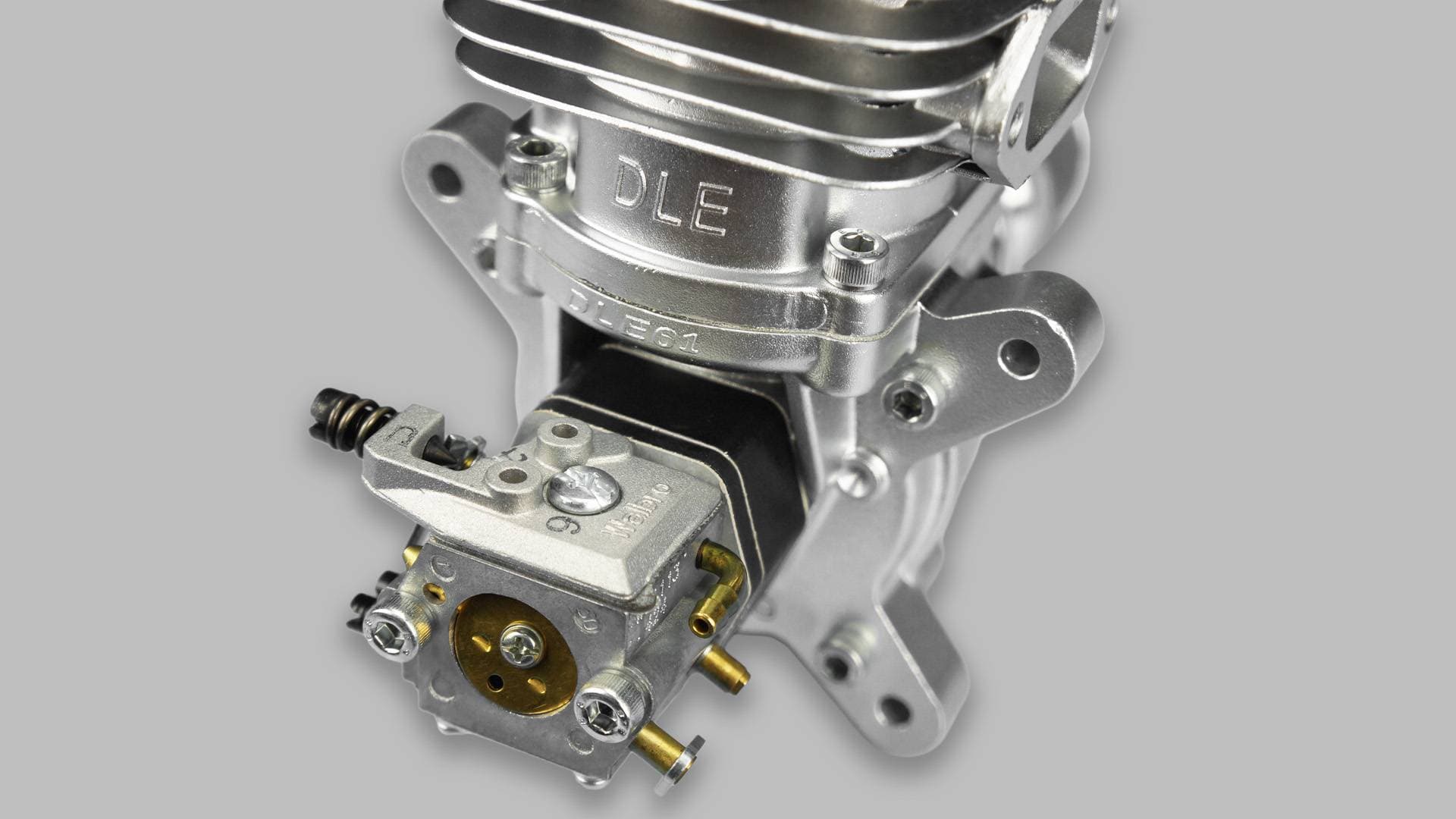

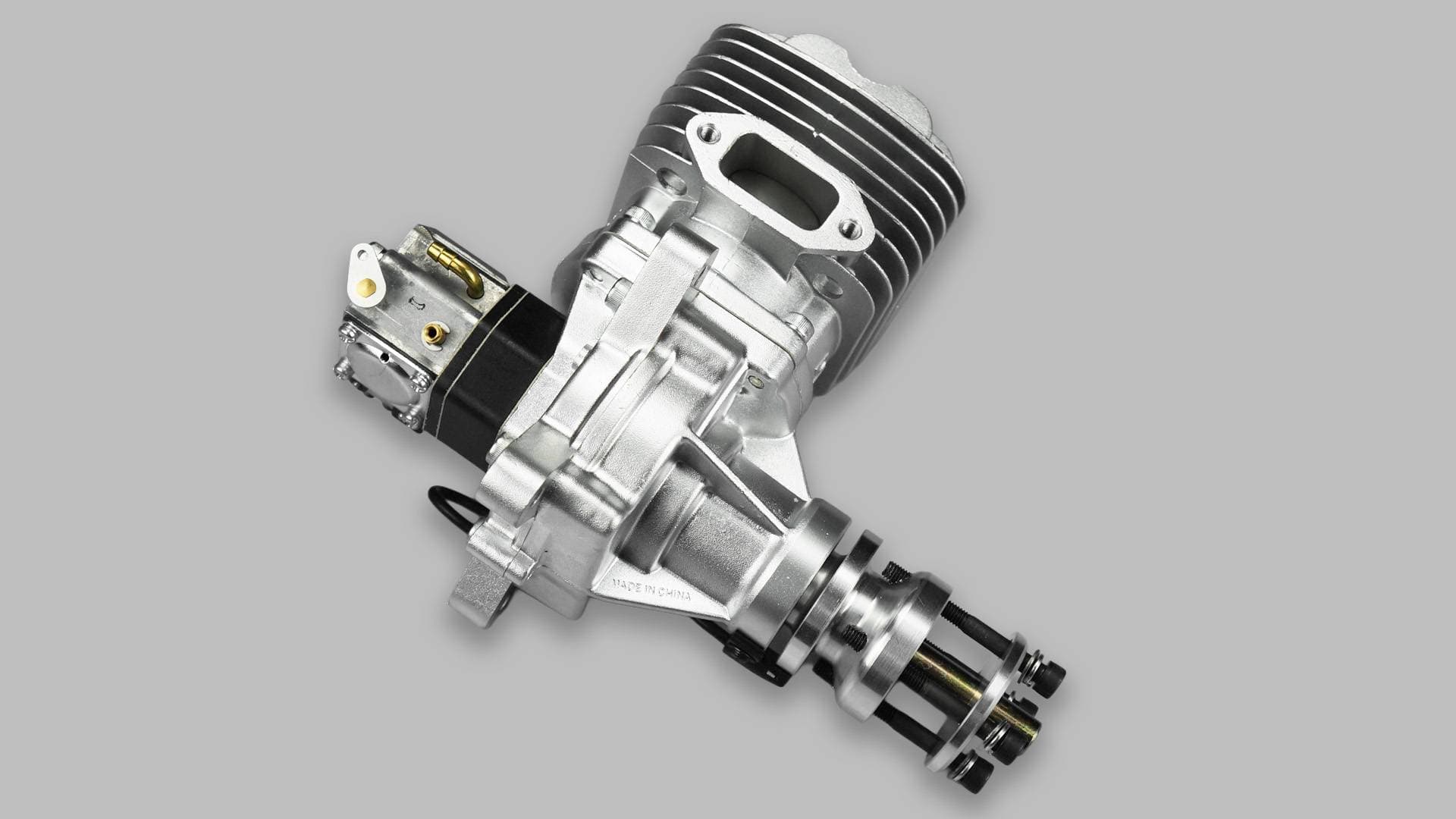

DLE61
Powerful performance for professional flight applications.
Technical Specifications
Detailed performance metrics of the DLE61
Core Performance
- Performance
- 6HP/7500rpm
- Idle Speed
- 1400 rpm/min
- Thrust (100m altitude)
- 15kg
- Thrust (1800m altitude)
- 13kg
- Propeller Size
- 22x10 ; 23x8 ; 23x10 ; 24x8
- Spark Plug Model
- NGK CM6
Dimensions & Weight
- Displacement
- 60cm³
- Bore × Stroke
- 47mm × 35mm
- Compression Ratio
- 10.5 : 1
- Lubrication Ratio
- 30 : 1
- Weight Distribution
- Engine 1370gExhaust 150gIgniter 140g
- Igniter Voltage
- 4.8V - 8.4V

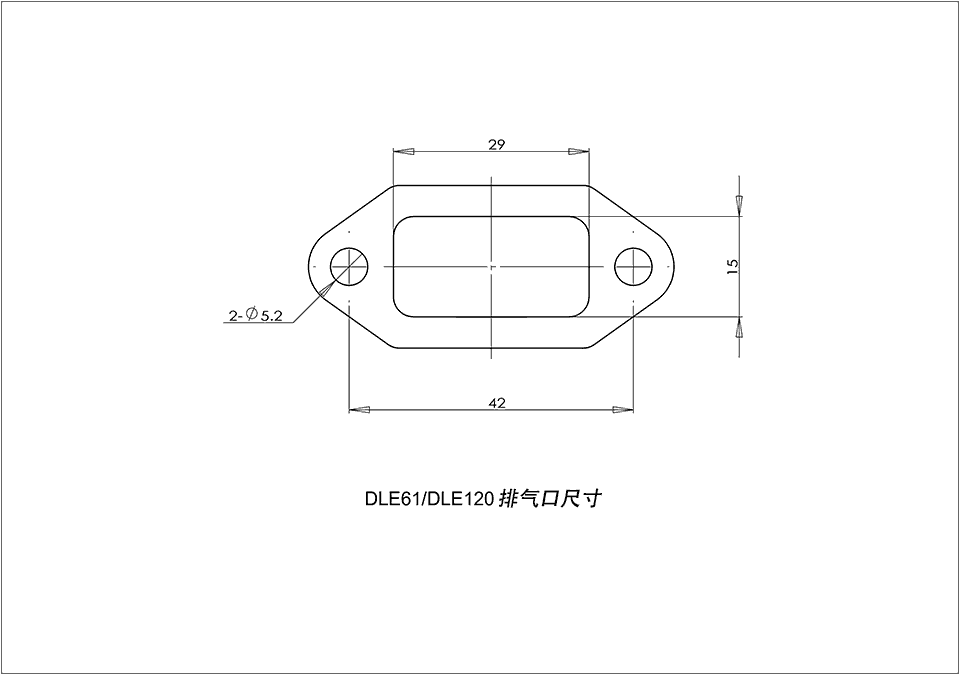

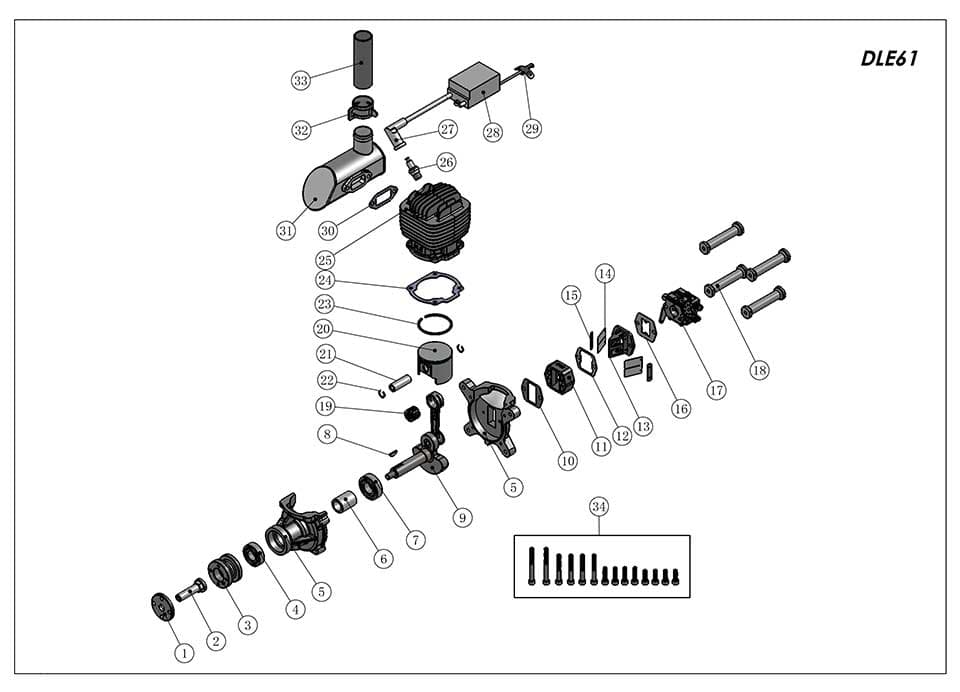

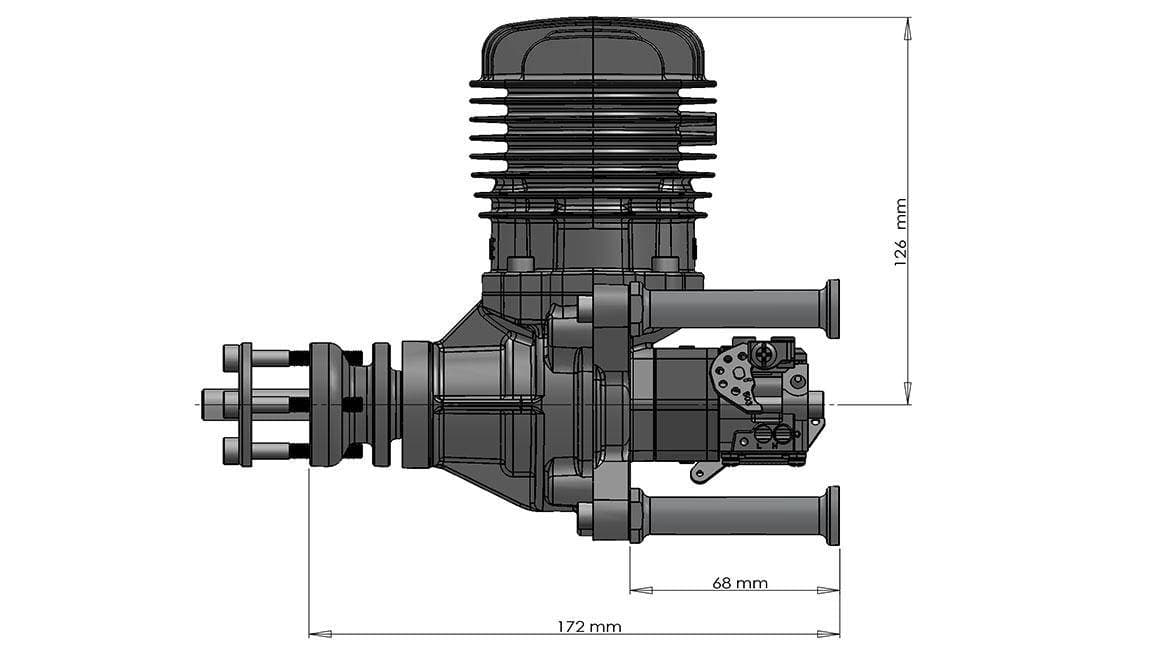

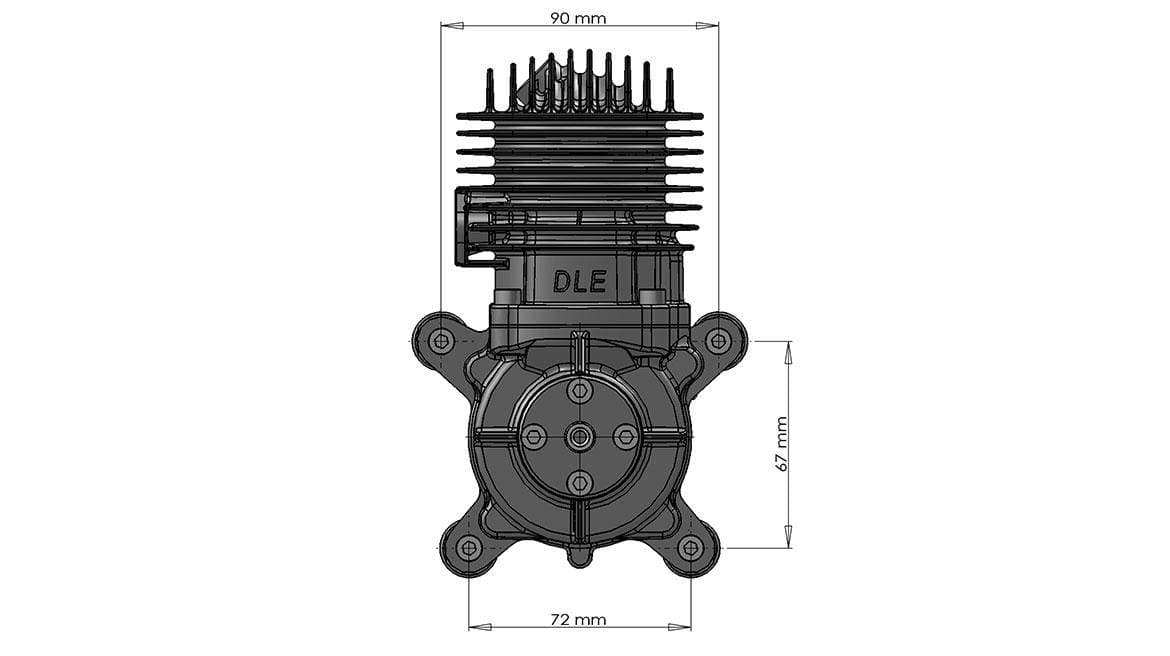

Product Dimensions
Precise engineering diagrams for cabin layout planning.
Technical Support & Downloads
Download detailed installation instructions and 3D model data for quick deployment.
