DLE35RA
Powerful performance for professional flight applications.
Technical Specifications
Detailed performance metrics of the DLE35RA
Core Performance
- Performance
- 4.1HP/8500rpm
- Idle Speed
- 1500 rpm/min
- Thrust (100m altitude)
- 9kg
- Thrust (1800m altitude)
- 7.8kg
- Propeller Size
- 18x10 ; 19x8 ; 20x8 ; 20x10
- Spark Plug Model
- NGK CM6
Dimensions & Weight
- Displacement
- 34.9cm³
- Bore × Stroke
- 38.5mm × 30mm
- Compression Ratio
- 7.6 : 1
- Lubrication Ratio
- 30 : 1
- Weight Distribution
- Engine 930gExhaust 120gIgniter 140g
- Igniter Voltage
- 4.8V - 8.4V

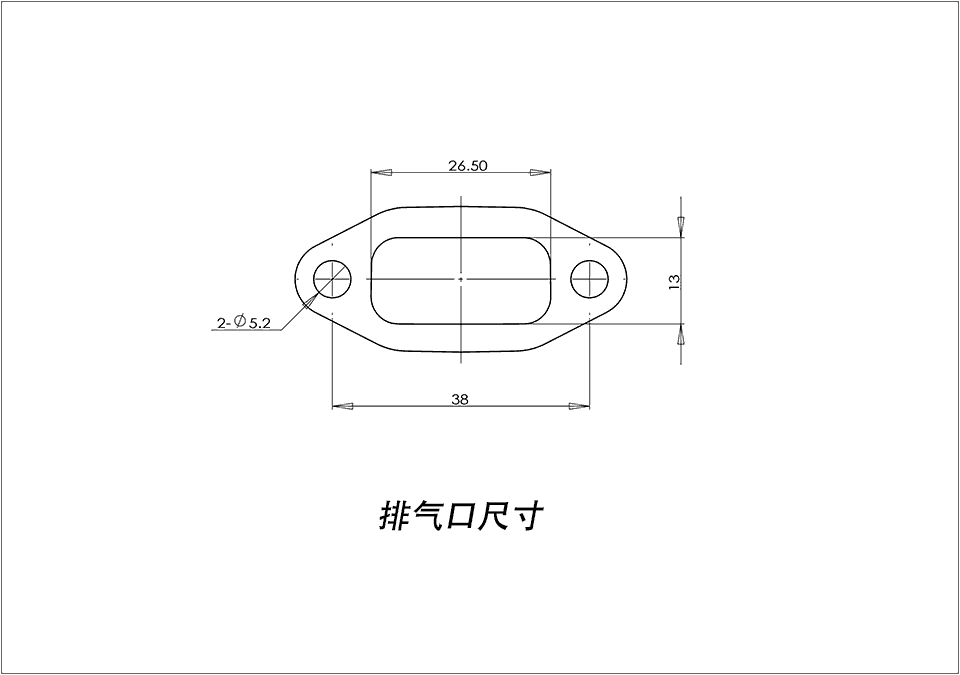

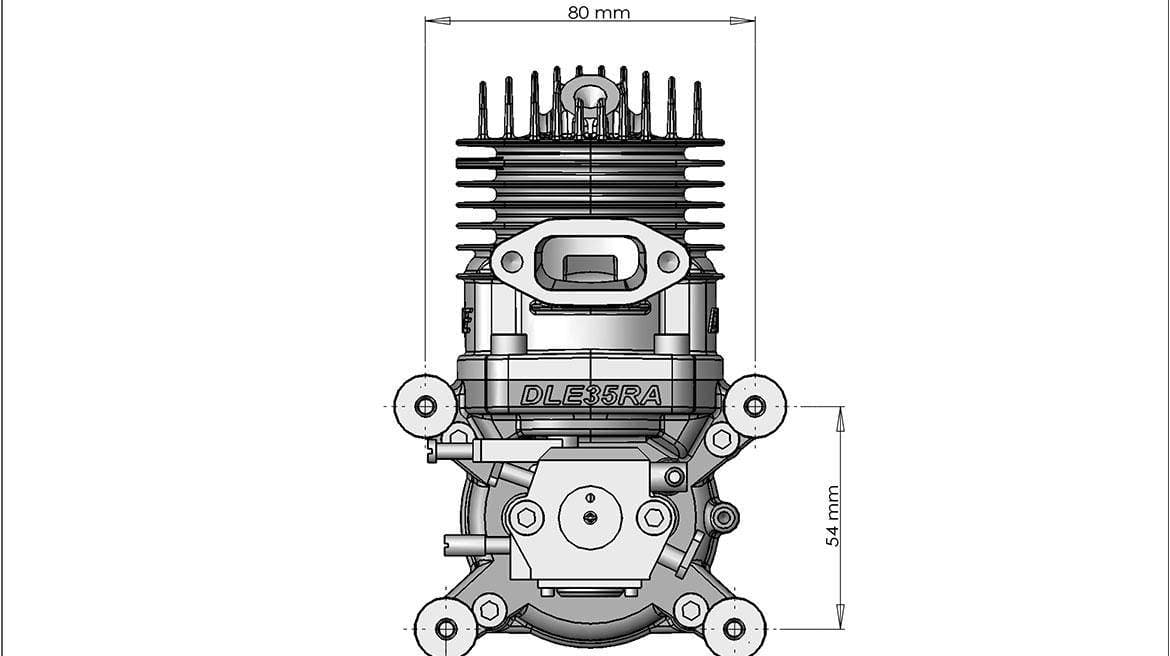

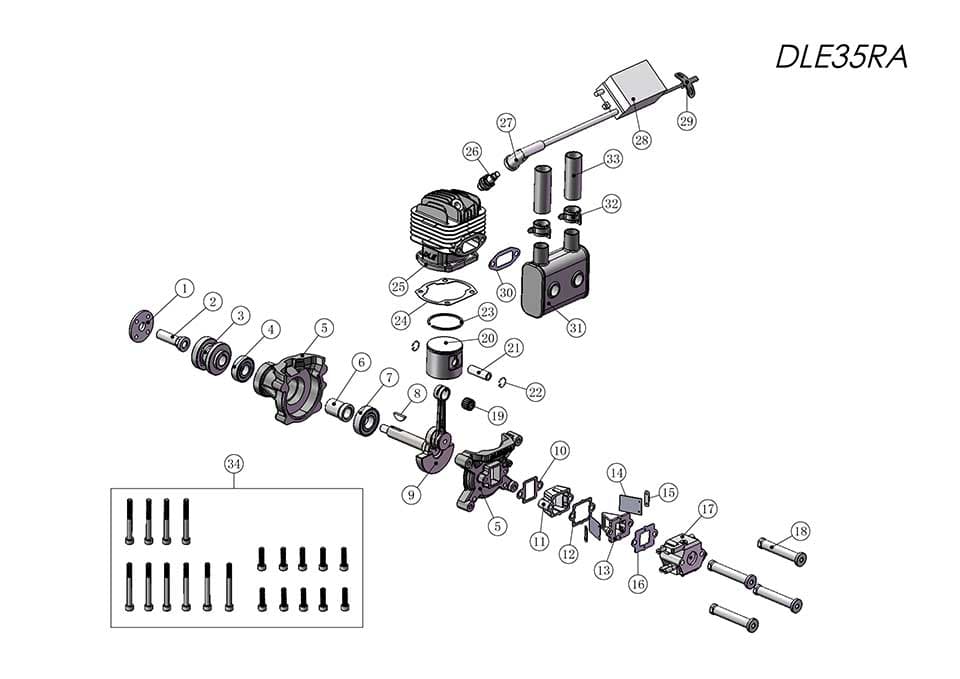

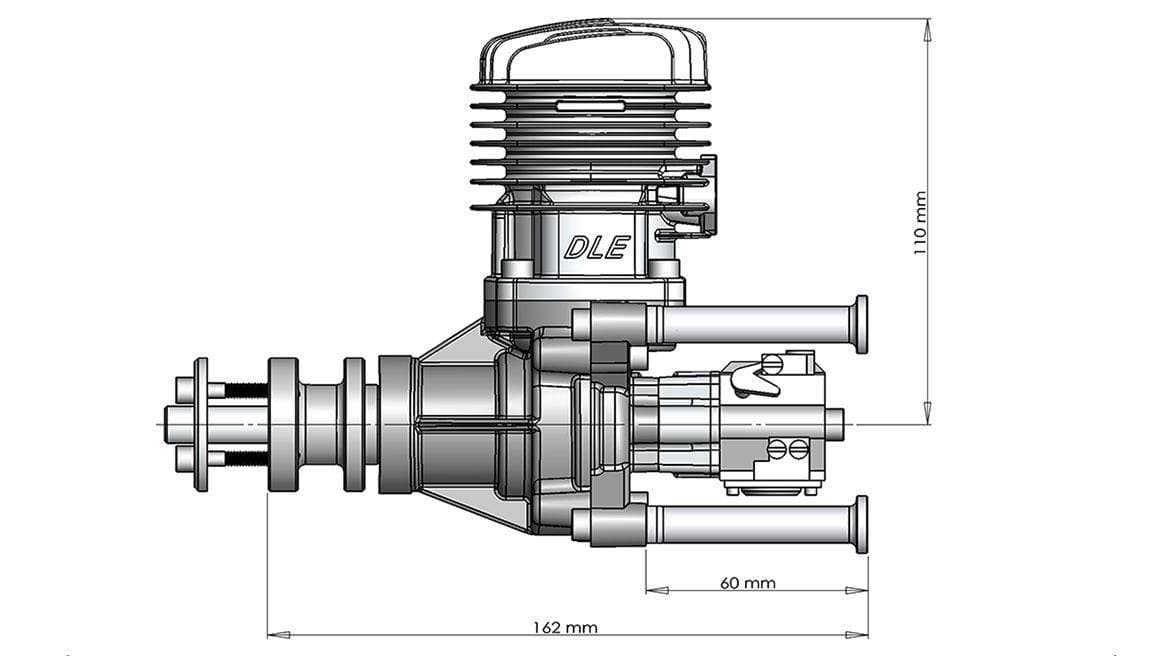

Product Dimensions
Precise engineering diagrams for cabin layout planning.
Technical Support & Downloads
Download detailed installation instructions and 3D model data for quick deployment.
