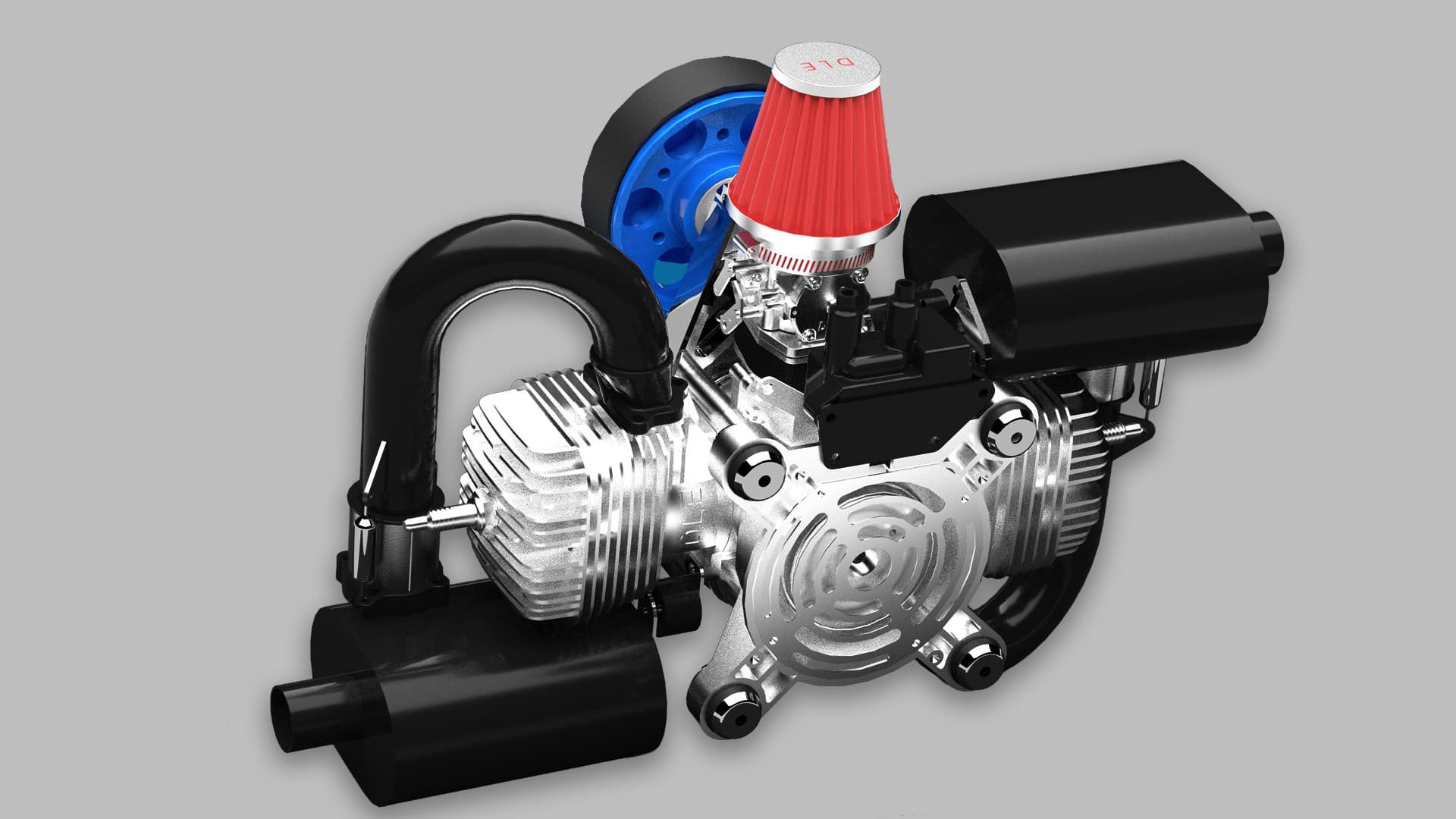

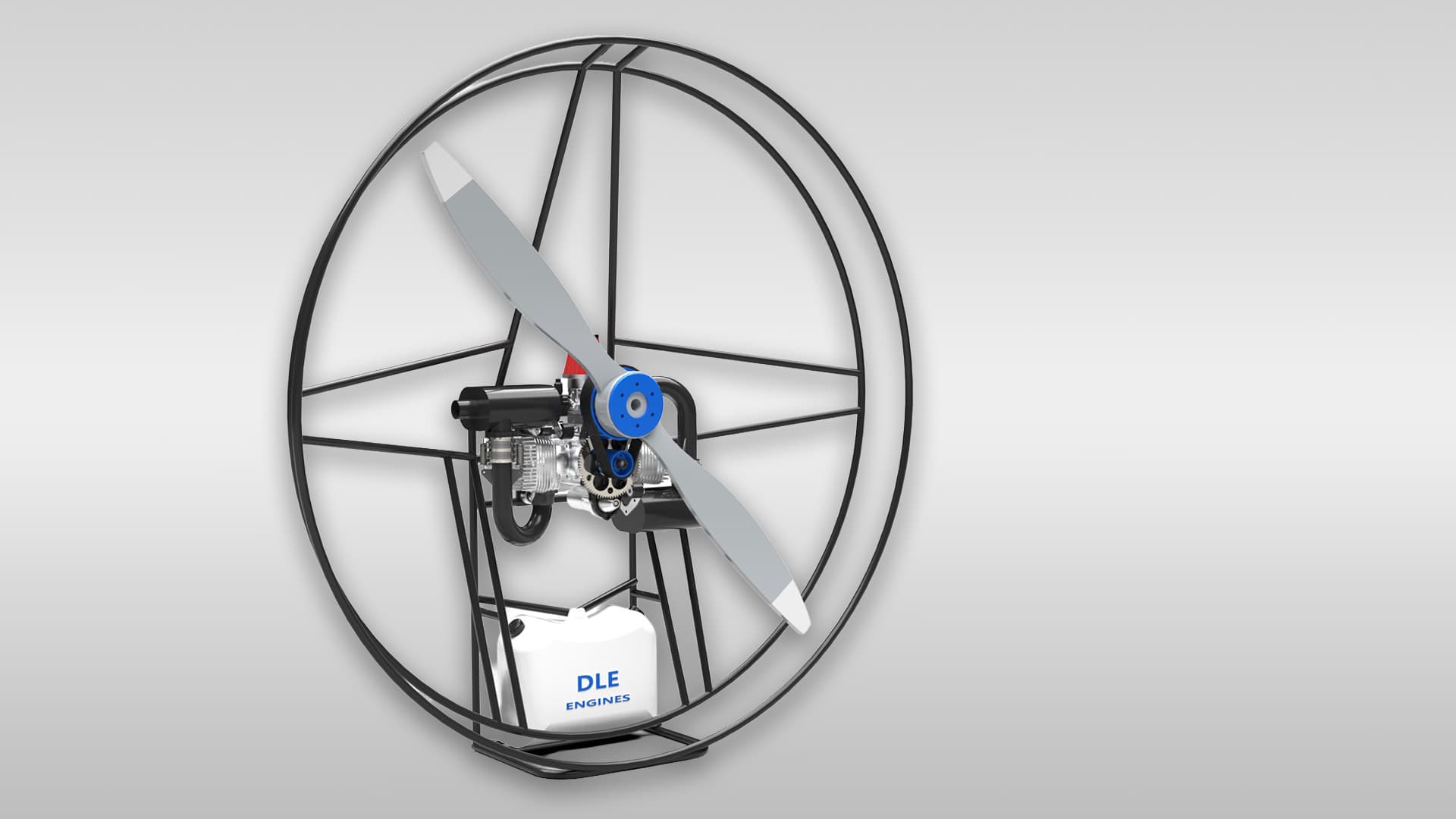

DLE200
Innovative Coating Technology Cylinder, Custom Carbon Fiber Propeller, Aviation-grade Vibration Reduction Structure, Planetary Gear Starting Mechanism
Product Features
Innovative Coating Technology Cylinder
Advanced coating technology enhances wear resistance and heat dissipation, extending engine life

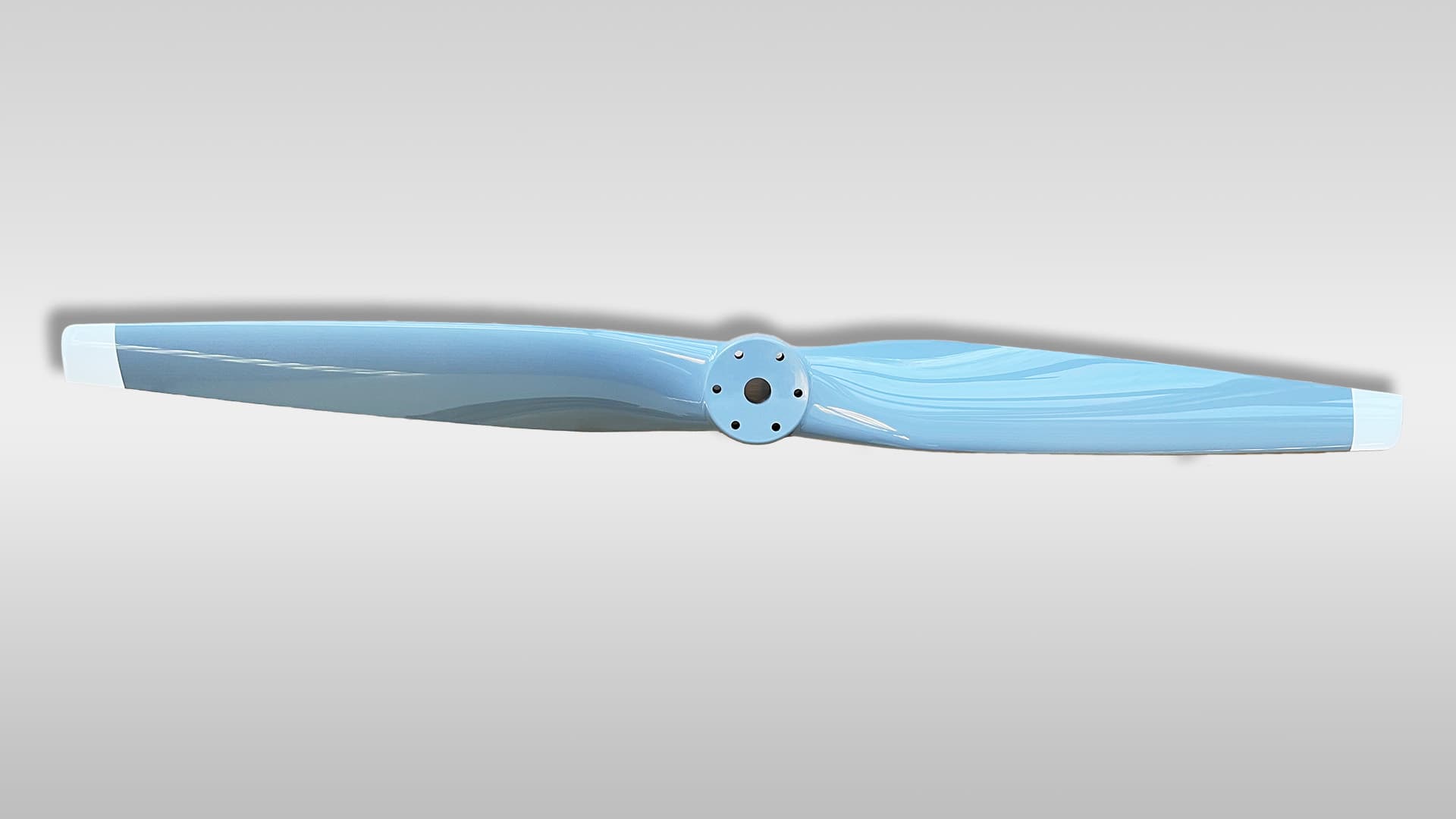

Custom Carbon Fiber Propeller
Lightweight carbon fiber material provides efficient power transmission and stable flight performance
Aviation-grade Vibration Reduction Structure
Professional vibration reduction design effectively reduces vibration, improving flight comfort and equipment stability
Planetary Gear Starting Mechanism
Efficient planetary gear transmission provides reliable starting performance and long service life
Technical Specifications
Detailed product specifications and performance indicators
Basic Parameters
Main Fastener Installation Torque
| Component Name | Thread Specification | Kg.m | n.m |
|---|---|---|---|
| Spark Plug | M14 | 2.4 | 24 |
| Propeller Fastening Screw | M8 | 2.5 | 25 |
| Cylinder Fastening Screw | M6 | 1 | 10 |
| Crankcase Fastening Screw | M6 | 1.5 | 15 |
| Crankcase Fastening Screw | M8 | 2 | 20 |
| Exhaust Port Screw | M6 | 1.5 | 15 |
| Eccentric Shaft Axial Tension Screw | M8 | 2 | 20 |
| Eccentric Shaft Radial Fixing Screw | M8 | 2.3 | 23 |
| Carburetor Fastening Screw | M5 | 0.5 | 5 |
| Crankshaft Front Nut | M12 | 4 | 40 |
| Crankshaft Rear Nut | M10 | 3.2 | 32 |

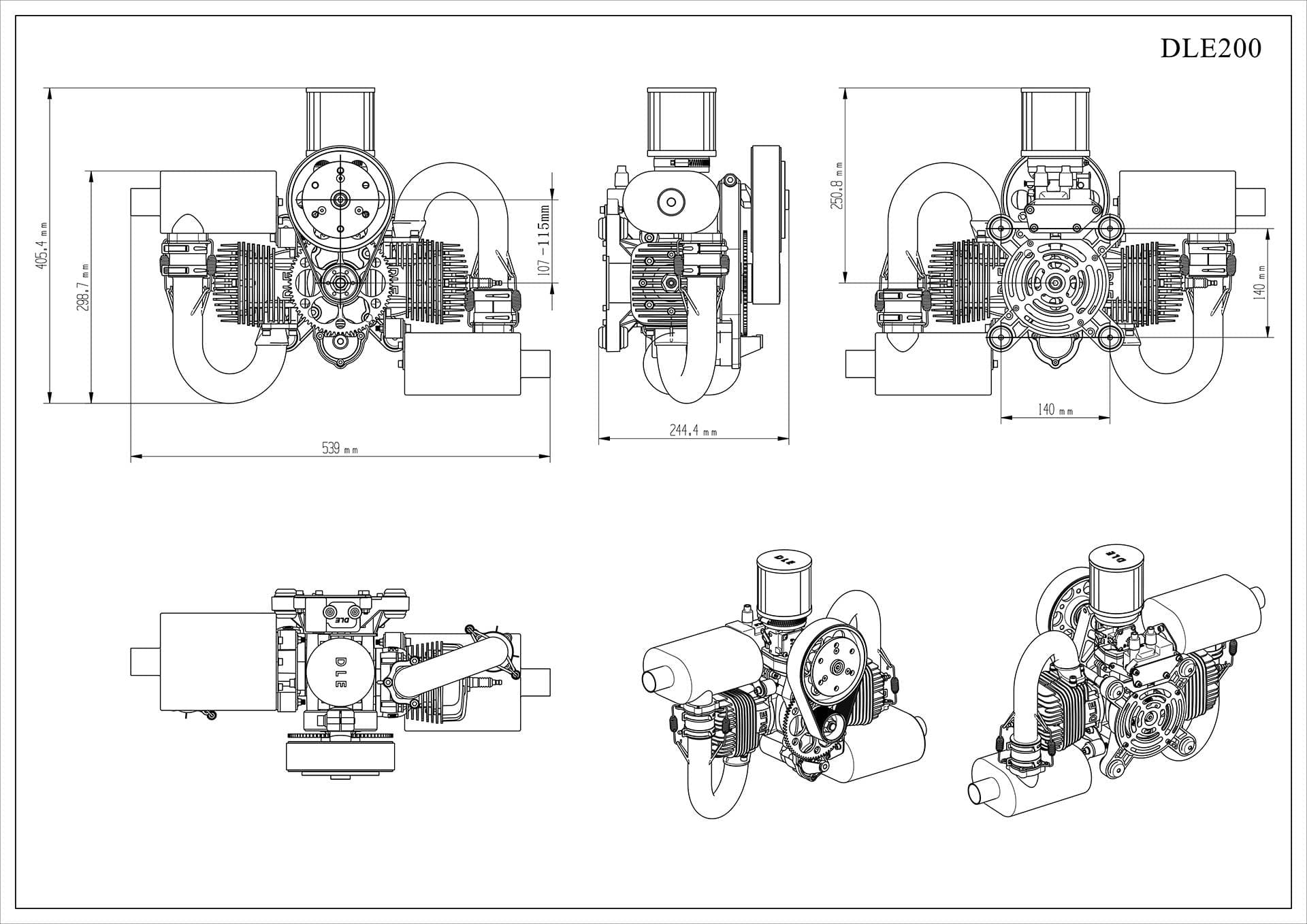

Product Dimensions
Precise engineering diagrams for installation planning.
Technical Support & Downloads
Download detailed installation instructions and 3D model data for the DLE200.
