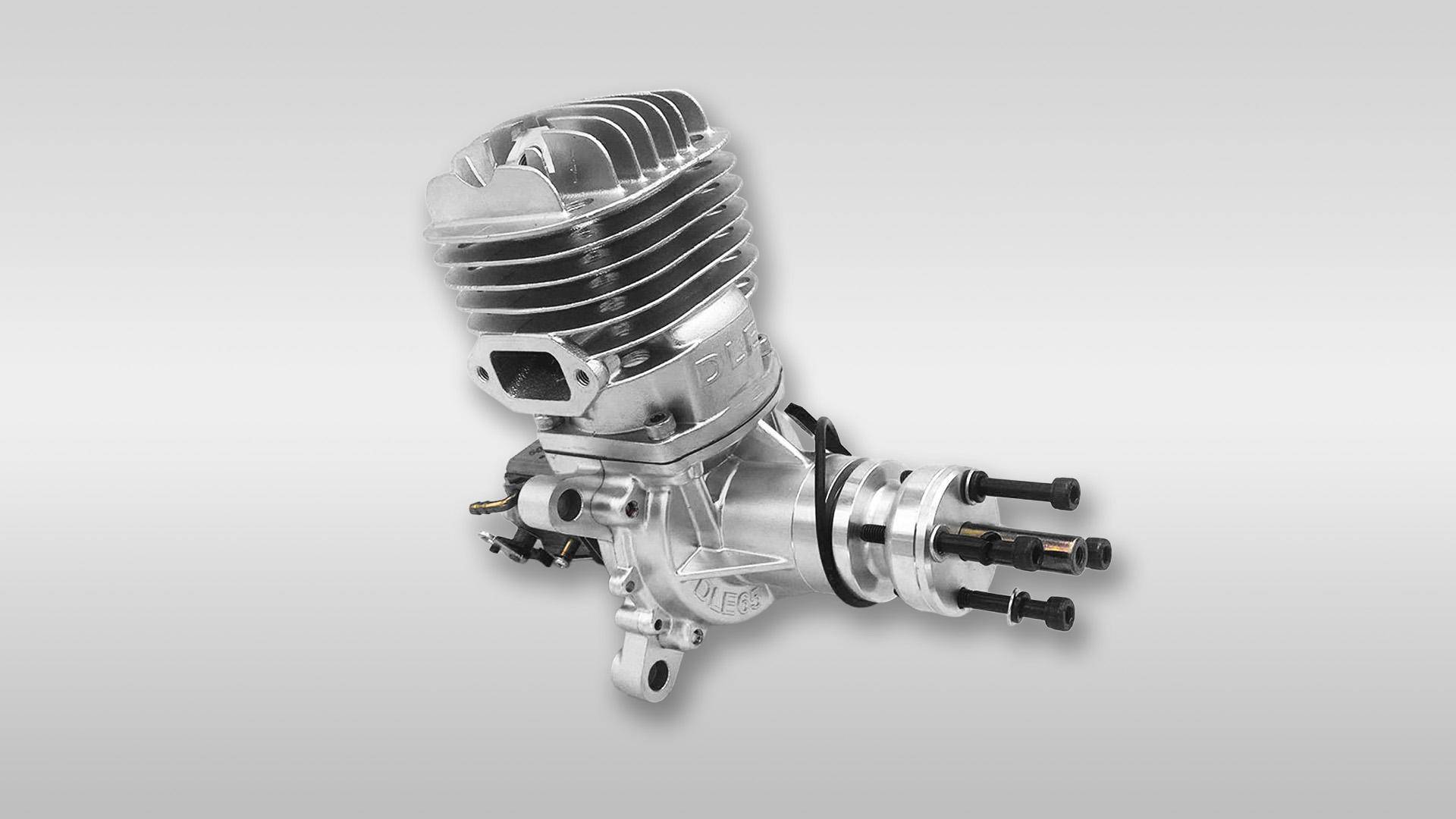

DLE65
Powerful performance for professional flight applications.
Technical Specifications
Detailed performance metrics of the DLE65
Core Performance
- Performance
- 6.5HP/7500rpm
- Idle Speed
- 1400 rpm/min
- Thrust (100m altitude)
- 16kg
- Thrust (1800m altitude)
- 13.7kg
- Propeller Size
- 23x10 ; 24x8 ; 24x9 ; 24x10
- Spark Plug Model
- DLE CM6
Dimensions & Weight
- Displacement
- 65cm³
- Bore × Stroke
- 47mm × 37.5mm
- Compression Ratio
- 9.2 : 1
- Lubrication Ratio
- 30 : 1
- Weight Distribution
- Engine 1450gExhaust 170gIgniter 130g
- Igniter Voltage
- 4.8V - 12V

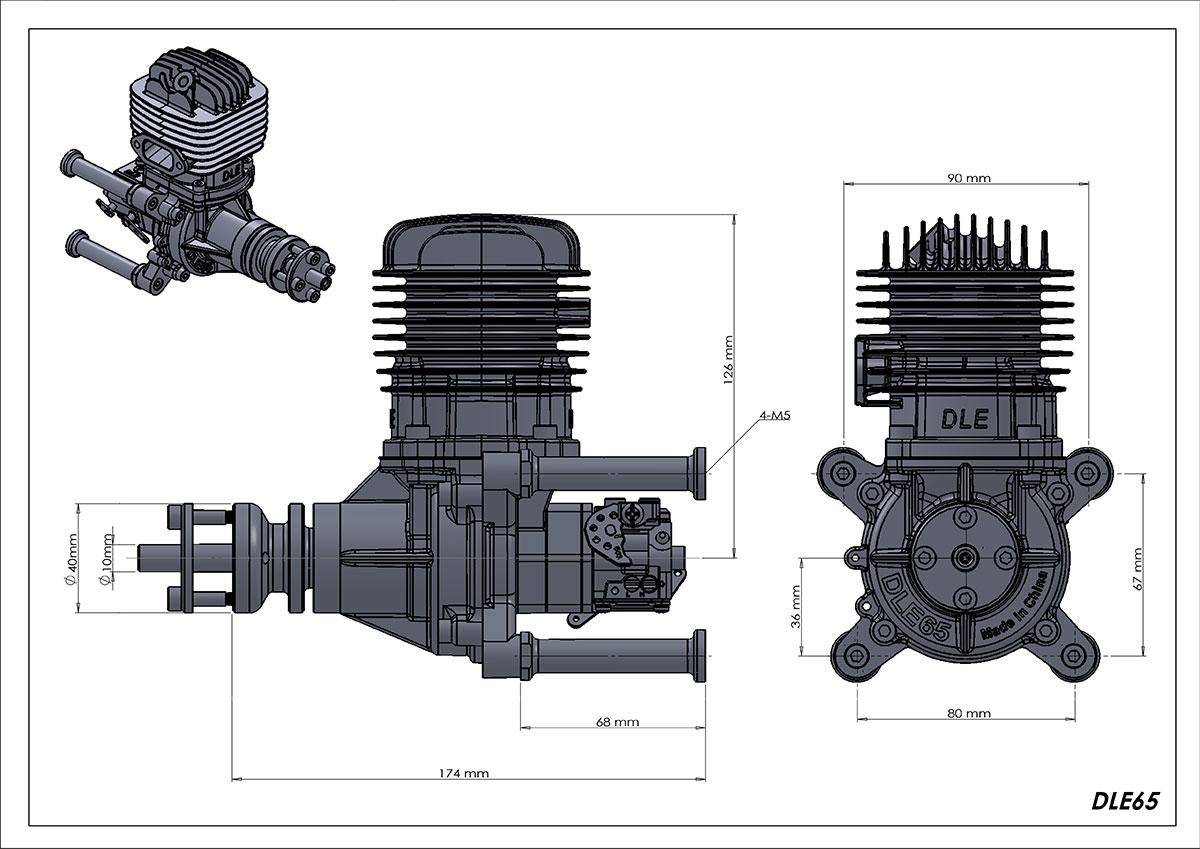

Product Dimensions
Precise engineering diagrams for cabin layout planning.
Technical Support & Downloads
Download detailed installation instructions and 3D model data for quick deployment.
