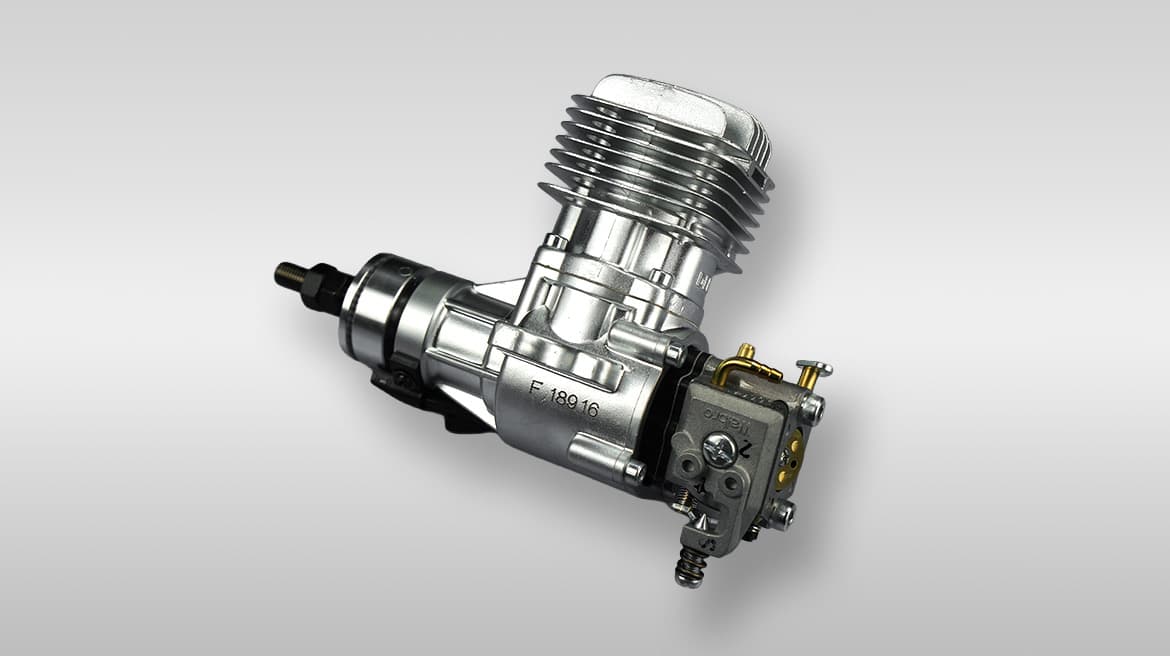

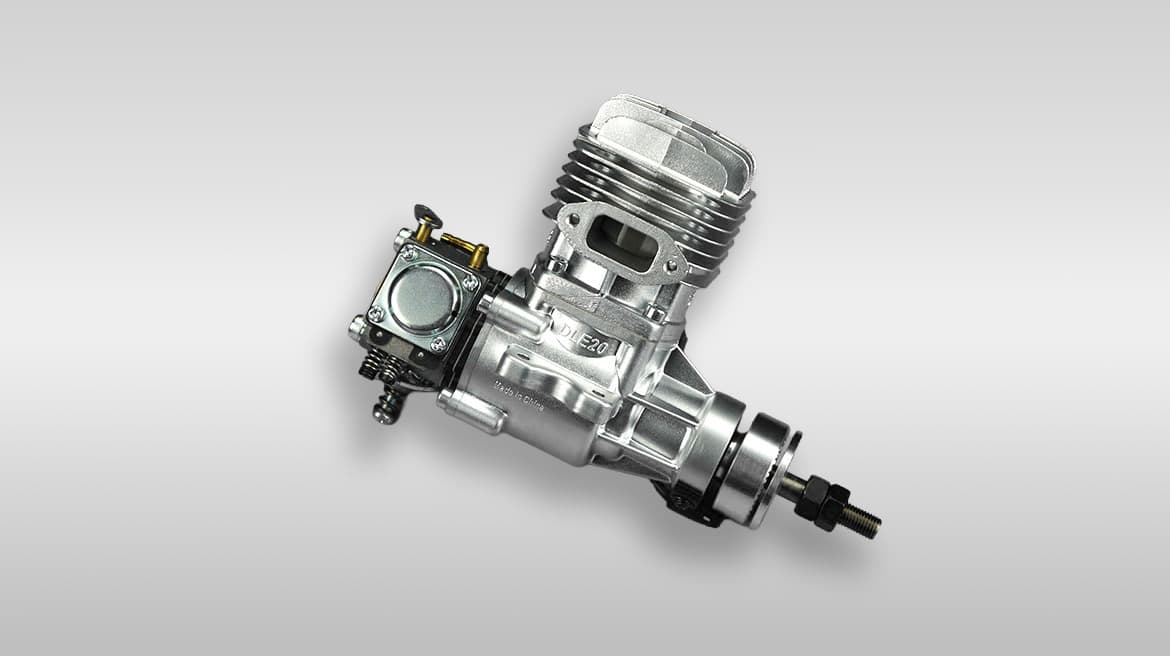

DLE20
Compact Size, Powerful Performance. Engineered for Ultimate Flight.
Technical Specifications
Detailed performance metrics of DLE20
Core Performance
- Performance
- 2.5HP/9000rpm
- Idle Speed
- 1750 rmp/min
- Thrust (100m alt)
- 6.3kg
- Thrust (1800m alt)
- 5.6kg
- Propeller Sizes
- 14x10 ; 15x8 ; 16x6 ; 17x6
- Spark Plug Type
- NGK CM6
Specs & Weight
- Displacement
- 20cm³
- Bore × Stroke
- 32mm × 25mm
- Compression Ratio
- 10.5 : 1
- Lubrication Ratio
- 30 : 1
- Weight Dist.
- Main Engine 660gExhaust 80gIgnition 140g
- Ignition Voltage
- 4.8V - 8.4V

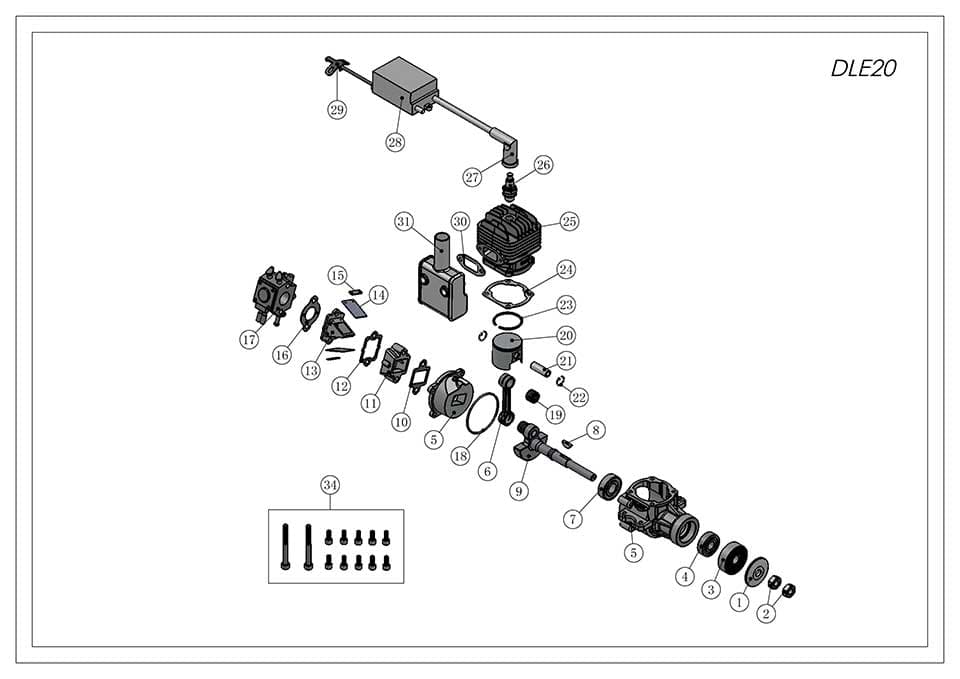

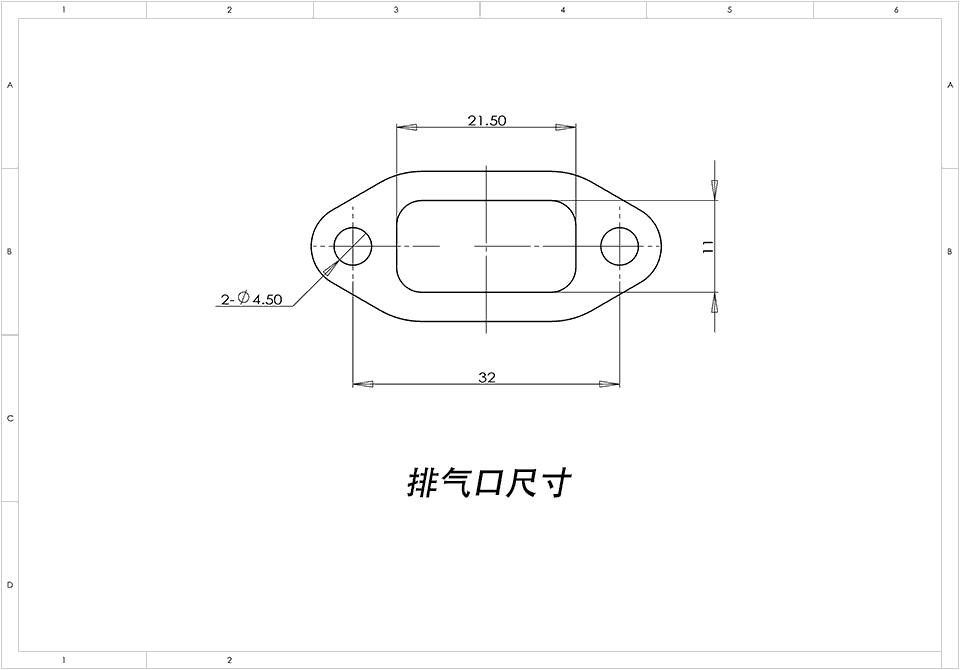

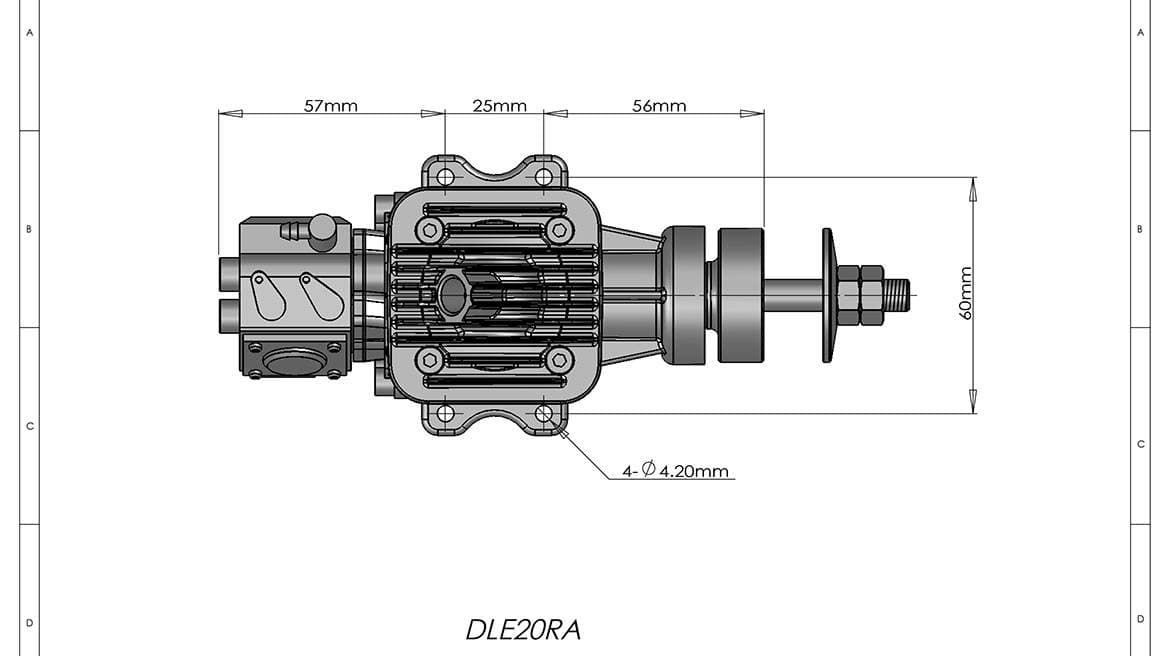

Product Dimensions
Precise engineering dimensions for your cabin layout planning.
Support & Downloads
Get detailed installation instructions and 3D model data for your DLE20.
