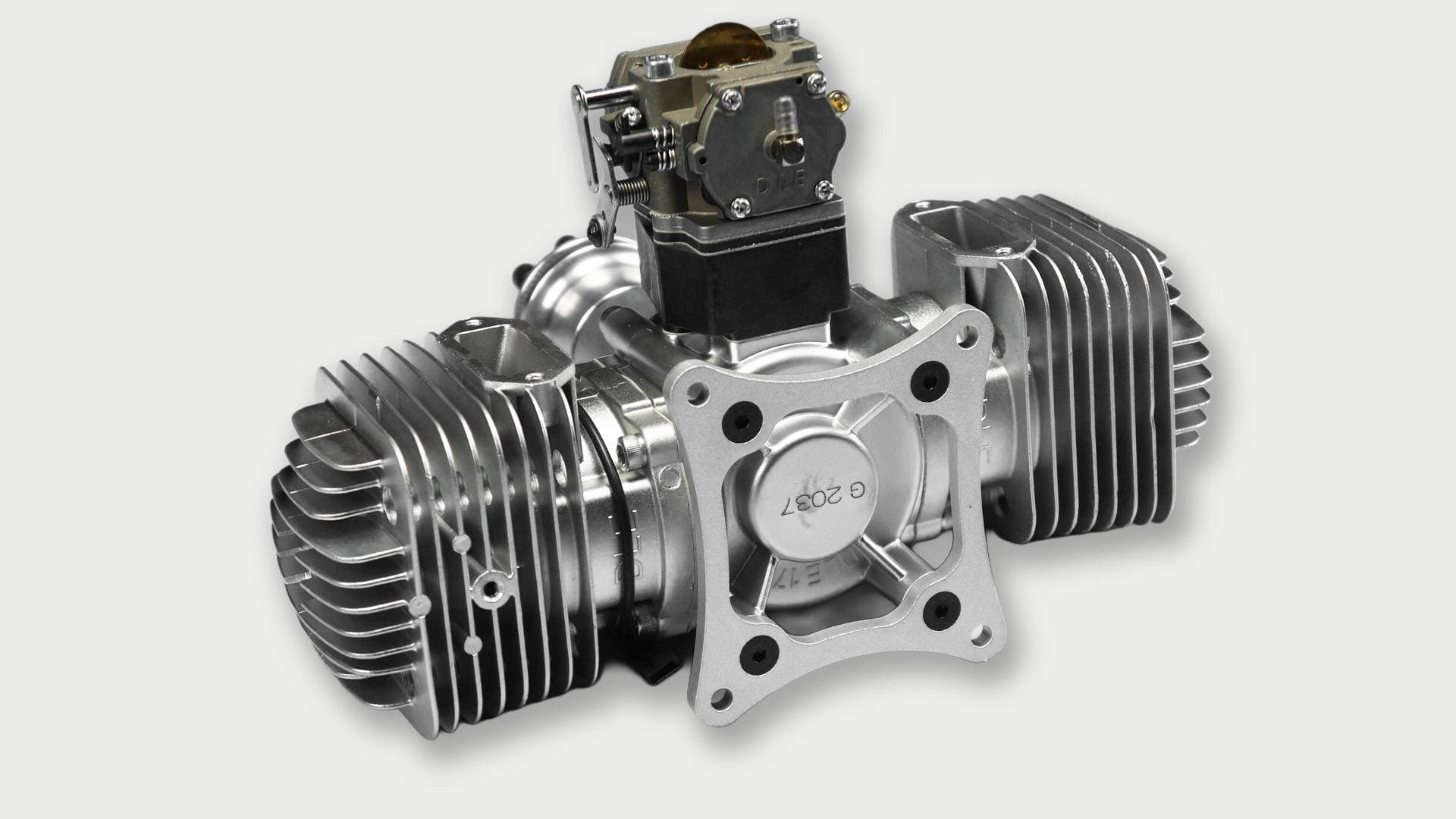

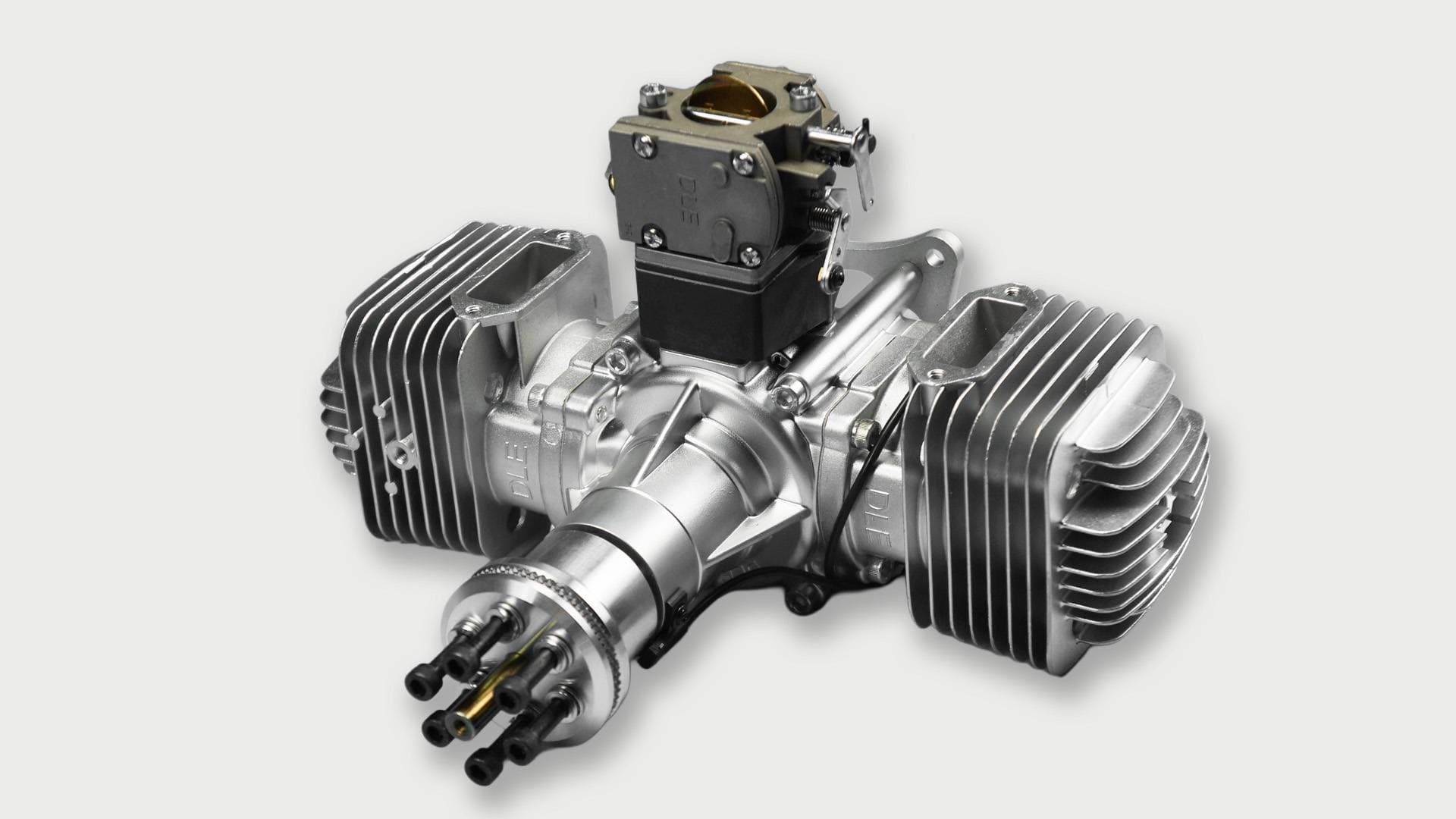

DLE170
Powerful Performance, Professional Grade. Engineered for High-End Aviation Applications.
Technical Specs
Detailed performance metrics for the DLE170
Core Performance
- Power
- 10.77KW/7500rpm
- Idle Speed
- 1100 RPM
- Thrust (100m Altitude)
- 35kg
- Thrust (1800m Altitude)
- 31.5kg
- Compatible Propeller Sizes
- 30x12 ; 32x10
- Spark Plug Type
- NGK CM6
Specs & Weight
- Displacement
- 170cm³
- Bore × Stroke
- 52mm × 40mm
- Compression Ratio
- 9.5 : 1
- Lubrication Ratio
- 30 : 1
- Weight Distribution
- Engine 3620gExhaust 470gIgnition 190g
- Ignition Voltage
- 4.8V - 8.4V

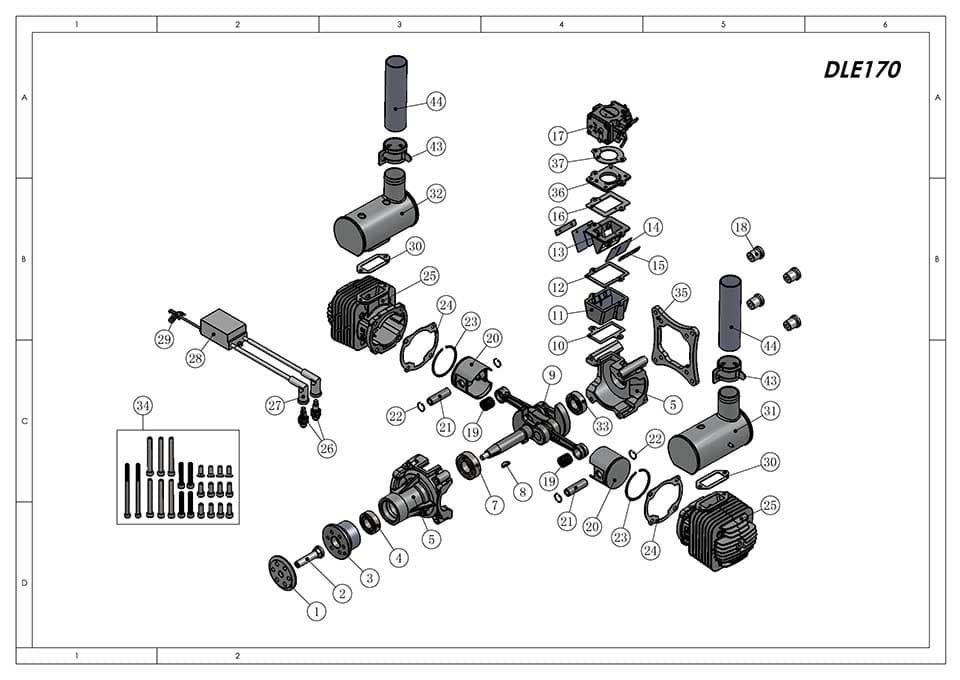

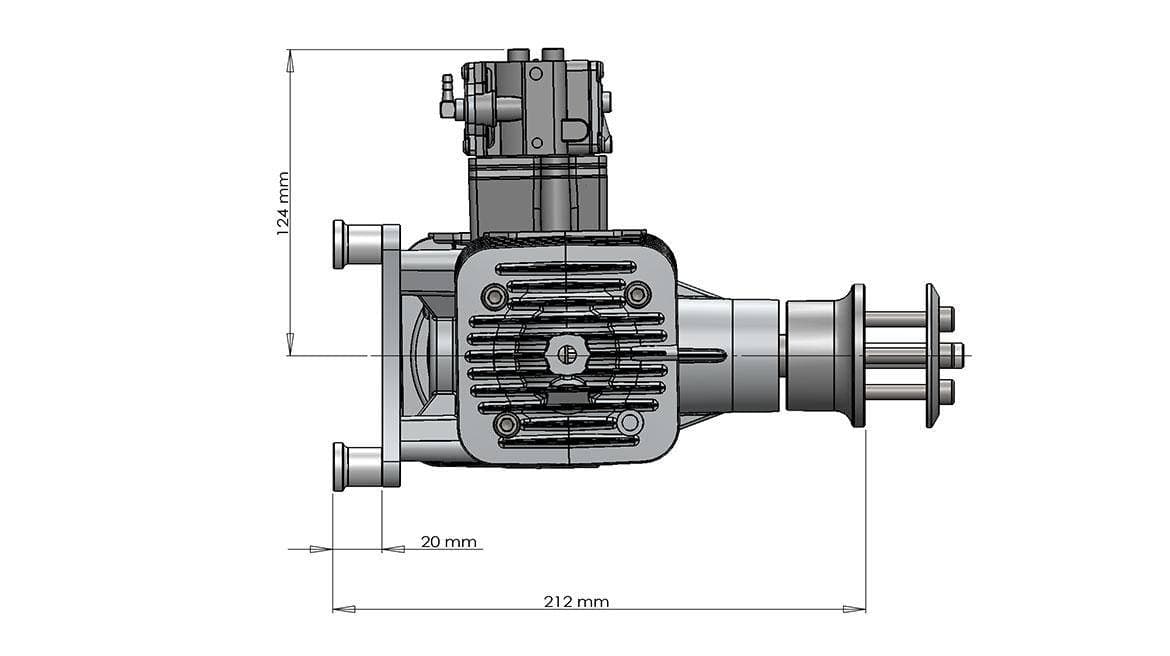

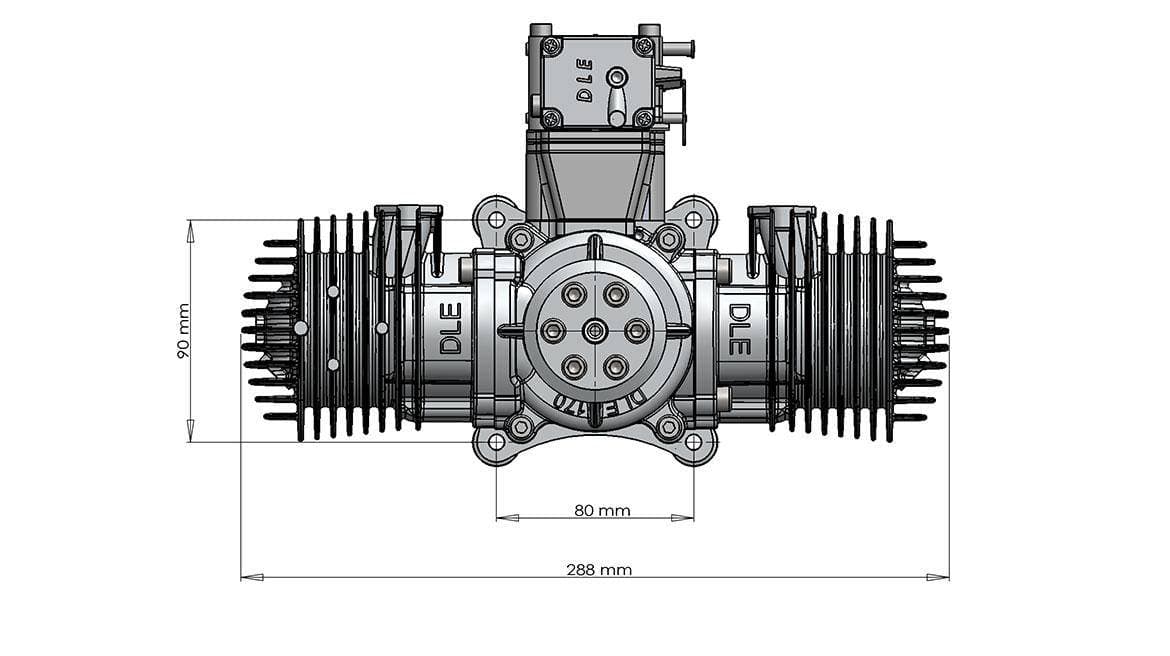

Product Dimensions
Precise engineering drawings for your aircraft layout planning.
Technical Downloads
Get detailed installation instructions and 3D model data for quick deployment.
