DLE30
Powerful performance, stable operation. Built for professional flight.
Technical Specs
Detailed performance metrics of DLE30
Core Performance
- Performance
- 3.7HP/8500rpm
- Idle Speed
- 1600 RPM
- Thrust (100m altitude)
- 8.5kg
- Thrust (1800m altitude)
- 7.5kg
- Propeller Specs
- 18x8 ; 18x10 ; 19x8 ; 20x8
- Spark Plug Type
- NGK CM6
Specs & Weight
- Displacement
- 30.5cm³
- Bore × Stroke
- 36mm × 30mm
- Compression Ratio
- 7.6 : 1
- Lubrication Ratio
- 30 : 1
- Weight Dist.
- Engine 920gMuffler 60gIgnition 130g
- Ignition Voltage
- 4.8V - 8.4V

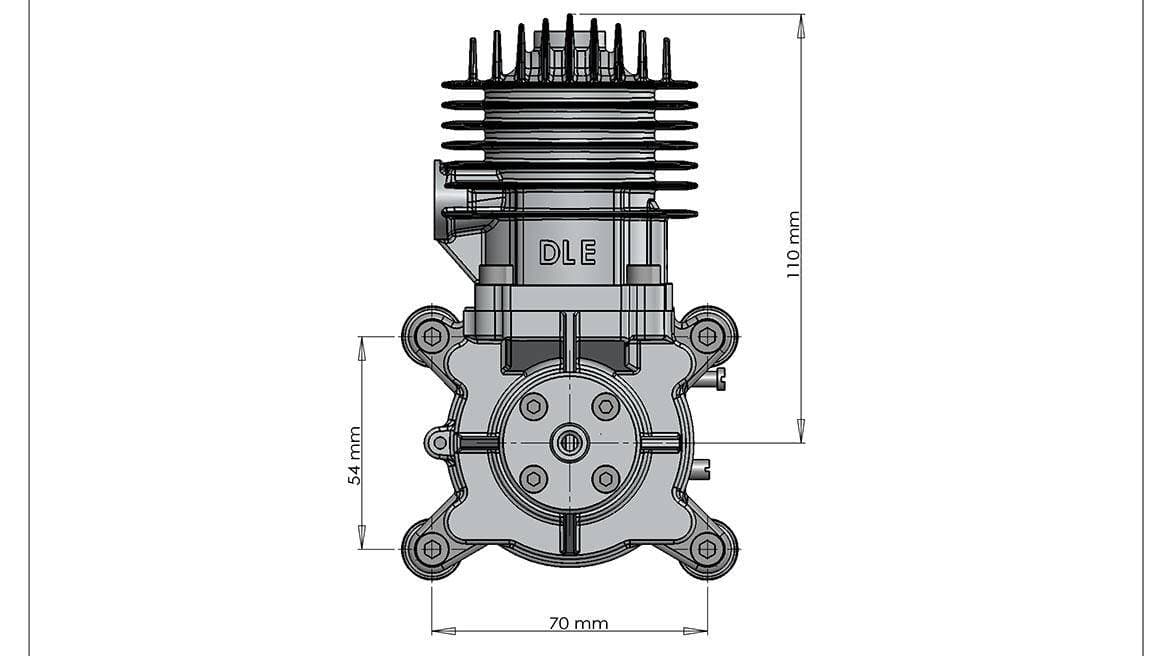

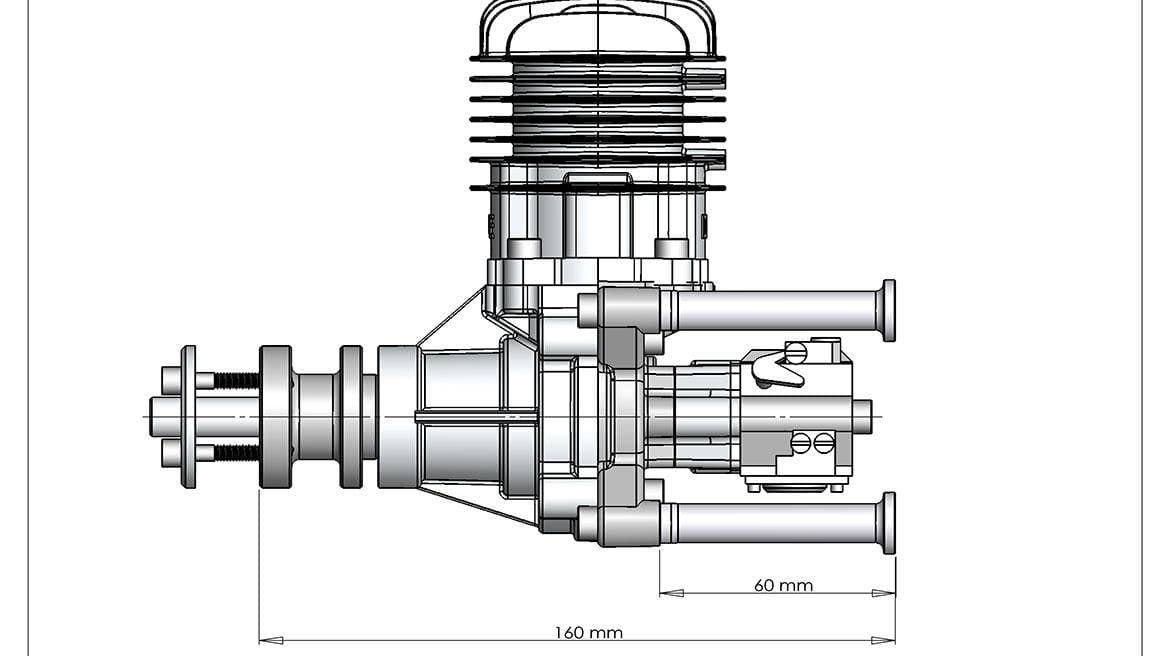

Product Dimensions
Precise engineering dimensions for your cabin layout planning.
Downloads
Download detailed installation instructions and 3D model data for DLE30 to facilitate quick deployment.
