DLE130G Starter & Generator Version
High Performance · Strong Power · Stable Generation.
The DLE130 Starter & Generator Version is a high-performance engine designed specifically for various UAVs and aircraft. It adopts planetary gear electric starting technology for quick startup and improved flight efficiency. At the same time, the engine has a power generation function, which can output 14V 350W of power to provide stable energy support for the aircraft.

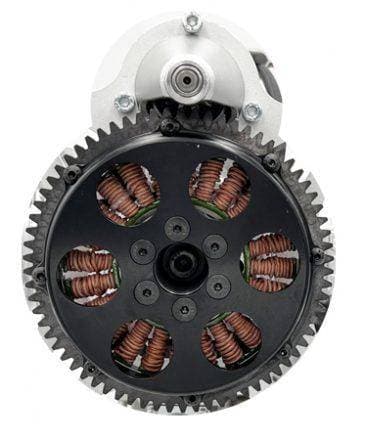

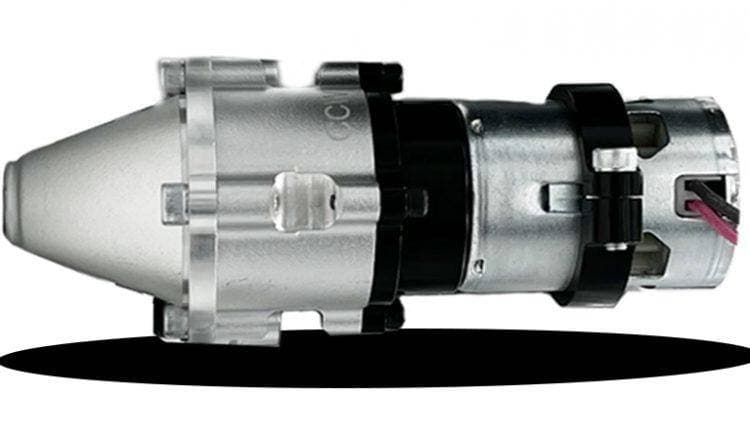

The DLE130 Starter & Generator Version engine also features a planetary gear starting mechanism, an efficient and reliable starting system. This mechanism uses planetary gear transmission to provide greater starting force and a smoother starting process, along with a longer service life. This starting mechanism can effectively reduce the load and vibration during startup, decrease engine wear and tear, and thereby improve the reliability and stability of the engine. Therefore, the DLE130 Starter & Generator Version not only has powerful driving and generating capabilities but also excellent starting performance, making it a highly practical aircraft engine.
Specifications
Detailed performance and electrical indicators of DLE130G
Basic Performance
- Performance
- 13HP/8500rpm
- Displacement
- 130cm³
- Bore × Stroke
- 47mm × 37.5mm
- Compression Ratio
- 9.2 : 1
- Lubrication Ratio
- 30 : 1
- Propeller
- 27×12; 28×10; 28×11; 29×9
- Spark Plug
- DLE CM6
Electrical & Weight
- Starter Motor Power
- 12V 400W
- Generator Voltage
- 14.5V
- Generator Power
- 350W/6000rpm
- Weight Data
- Engine+Exhaust 4200gRectifier 415gIgnition+Spark Plug 200gRelay 160g
Power Output Table
| RPM | Output Voltage (V) | Output Power (W) |
|---|---|---|
| 6000 | 14.5 | 350W |
| 5000 | 14.5 | 330W |
| 4000 | 14.5 | 300W |
| 3000 | 14.5 | - |

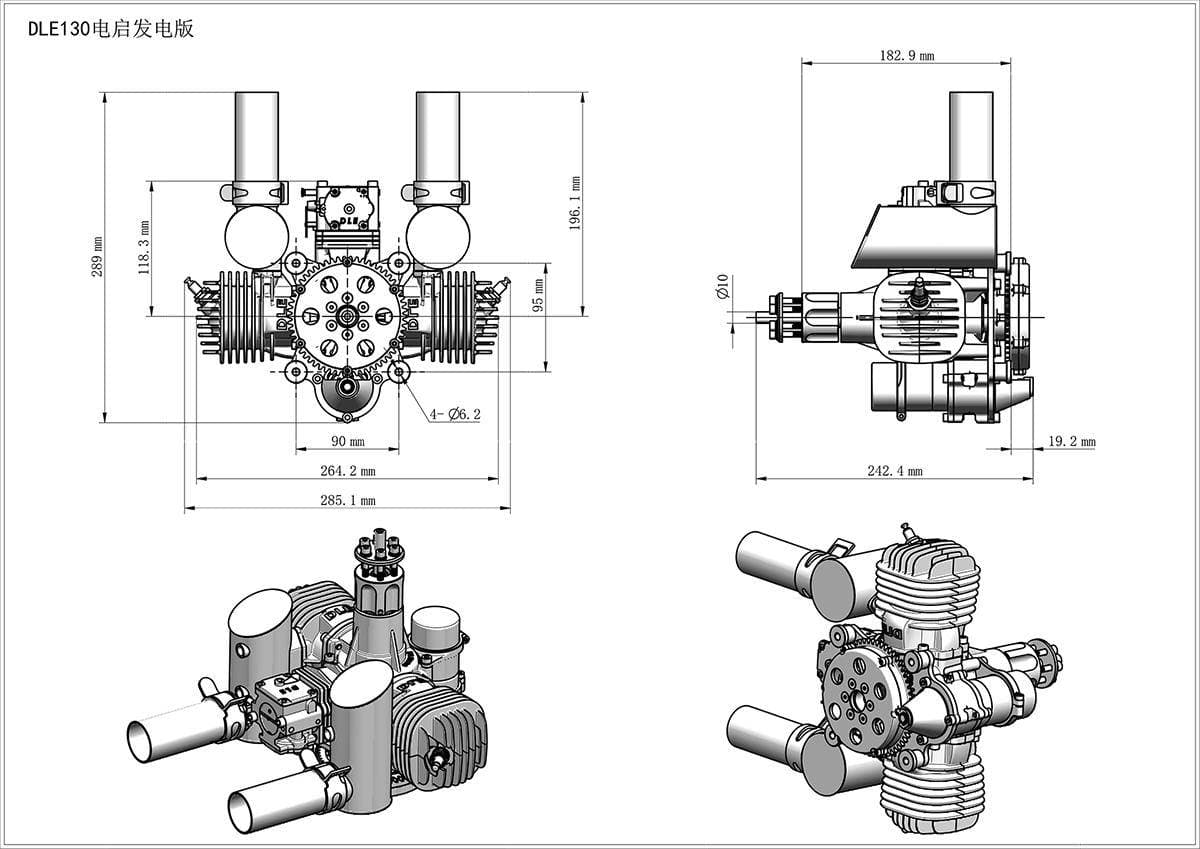

Installation Dimensions
Precise engineering drawings for easy installation planning
